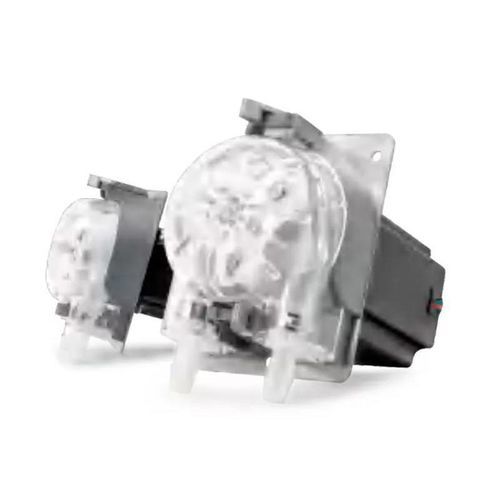

Peristaltic pump LFP601STfor liquidsDCself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- for liquids
- Operation
- DC
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- flow control
- Material
- stainless steel
- Voltage
- 24 V
- Other characteristics
- adjustable, low-noise, with electronic control
- Flow
Min.: 0.6 l/h
(0.1585 us gal/h)Max.: 123 l/h
(32.49316 us gal/h)- Power
24 W
(0.03 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 45 °C
(113 °F)- Weight
1,470 g
(51.85 oz)
Description
Product Overview
Parameters (extract from specification tables)
Model: P601ST
Commercial model: LFP601ST
Installation: Stainless steel mounting plate (standard); customizable installation methods
Motor type: Stepper motor (DC)
Control: Driver control (optional driver and PLC); supports RS-485 communication
Function: Precise, adjustable flow control; start/stop; forward/reverse
Working voltage: DC 24V
Power: ≤24W
Weight: 1470 g
Working environment: Temperature 0–45 ℃; Relative Humidity <85% RH
Rollers: Standard with 3 rollers
Flow rates and compatible tubing
Key technical features
- Convenient start/stop with adjustable speed and forward/reverse capability
- High precision, low noise and stable operation suitable for industrial applications
- Supports PLC integration and RS-485 communication for automation
- Customizable installation methods to fit varied setups
Parameters (extract from specification tables)
Model: P601ST
Commercial model: LFP601ST
Installation: Stainless steel mounting plate (standard); customizable installation methods
Motor type: Stepper motor (DC)
Control: Driver control (optional driver and PLC); supports RS-485 communication
Function: Precise, adjustable flow control; start/stop; forward/reverse
Working voltage: DC 24V
Power: ≤24W
Weight: 1470 g
Working environment: Temperature 0–45 ℃; Relative Humidity <85% RH
Rollers: Standard with 3 rollers
Flow rates and compatible tubing
- 26#: 10–920 ml/min — BPT tube, Silicone tube, A60-F, Viton
- 35#: 10–1450 ml/min — BPT tube, Silicone tube, A60-F, Viton
- 36#: 10–2050 ml/min — BPT tube, Silicone tube, A60-F, Viton
Key technical features
- Precise flow control via stepper motor and driver
- Optional PLC control and RS-485 for system integration
- Customizable mounting for flexible installation in industrial equipment
- Standard 3-roller configuration for consistent flow delivery
