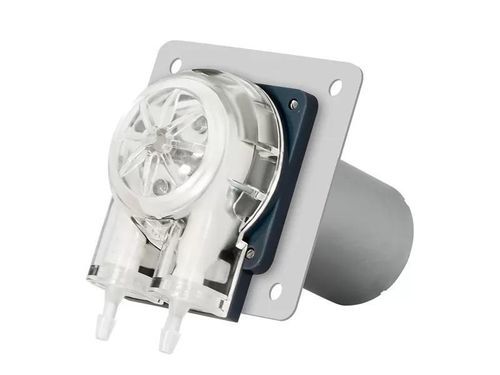

Peristaltic pump LFP104BL

for liquidswith brushless DC motornormal priming

Product highlights

• Brushless motor control for a more stable and consistent flow.
• Low-speed operation in a compact form factor while enabling high flow capacity.
• Hidden reduction box and compact mechanical layout for space-saving installation.
• Snap-fit fixation for simplified maintenance and quick replacement.

Specifications

• Model: P104BL (commercial designation LFP104BL)
• Installation: Stainless steel mounting plate included as standard; customizable mounting available
• Motor type: Brushless DC motor
• Control method: Driver control; optional PLC integration
• Function: Precise, adjustable flow control
• Rated voltage: DC24V
• Power consumption: ≤ 8W
• Weight: 110 g
• Operating environment: Temperature 0–45 °C; Relative humidity <85% RH
• Standard rollers: 3 rollers
• Compatible tube types: BPT, silicone, A60-F, Viton

Flow rates (ml/min) at DC24V

• Tube 1×3: 2–23 ml/min
• Tube 2×4: 4–97 ml/min
• Tube 3×5: 8–185 ml/min
• Tube 4×6: 12–270 ml/min

Dimensions & documents
Refer to the product dimension images and the PDF datasheet for detailed dimensional drawings, mounting layout and full technical tables.

Applications & notes
Designed for stable fluid transfer in low-speed, high-flow applications where precise, adjustable metering is required. Mounting and control options can be customized to integrate with automated systems.

Technical features

• Brand: LEFOO
• Model: LFP104BL (P104BL)
• Compact, low-noise brushless DC drive suitable for continuous operation
• Driver control with optional PLC interface for process integration
• Multiple tube size support covering 2–270 ml/min at DC24V depending on tube selection
• Stainless steel mounting plate for industrial installation
