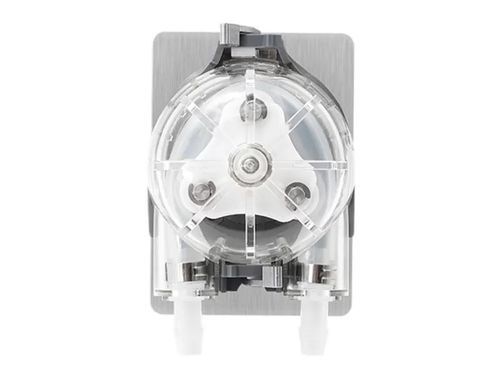

Peristaltic pump LFP601DB

for liquidswith DC motornormal priming

Product overview

• Pump head with quick disassembly/assembly structure for easier maintenance and repair.
• Compact single-unit design saves space on instrumentation racks or systems.
• Compatible with multiple tube sizes to cover a wide flow range.
• Transparent pump cover enables real-time visual monitoring of operation.
• Installation method (mounting plate) can be customized to application requirements.

Specifications (summary)
Model: LFP601DB
Table model: P601DB
Installation: Stainless steel mounting plate (standard, customizable)
Motor type: Brushed DC motor
Control method: Power-on operation (on/off)
Function: Fixed flow rate (dose delivery)
Working voltage: DC12V, DC24V
Power: ≤ 32W
Weight: 670 g
Operating environment: Temperature 0–45°C; Relative humidity <85% RH
Rollers: Standard with 3 rollers


FLOW RATE: ml/min
Voltage: DC12V, DC24V
26#: 330–1915 ml/min
35#: 560–2930 ml/min
36#: 725–4200 ml/min


Tube types

• BPT tube
• Silicone tube
• A60-F
• Viton tube

Notes
Transparent pump cover for real-time monitoring. Pump head engineered for quick disassembly/assembly to simplify maintenance. Installation and configuration can be tailored to the application.

Technical features / specifications

• Commercial model: LFP601DB
• Technical model: P601DB
• Installation: Stainless steel mounting plate (standard, customizable)
• Motor: Brushed DC motor
• Control: Power-on (on/off)
• Operation mode: Fixed flow rate
• Voltage: DC12V / DC24V
• Power: ≤32W
• Weight: 670 g
• Operating temperature: 0–45°C
• Max relative humidity: <85% RH
• Rollers: 3 (standard)
• Compatible tube types: BPT, silicone, A60-F, Viton
• Flow ranges (ml/min): 26# = 330–1915; 35# = 560–2930; 36# = 725–4200
