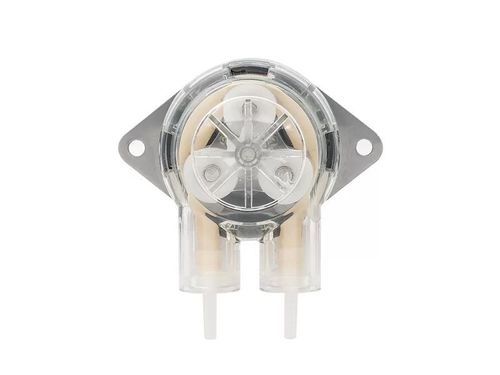

Peristaltic pump LFP102ADB

for liquidswith DC motornormal priming

Key features

• High precision and stability for controlled dosing and metering.
• Low noise operation suitable for laboratory and industrial environments.
• Compact footprint with long service life.
• Tool‑free tube replacement for fast maintenance.

Technical specifications
Model: LFP102ADB (internal ref: P102ADB)
Mounting: Stainless steel mounting plate (standard; customizable)
Motor: Brushed DC motor
Control: Power‑on continuous operation
Function: Fixed flow rate (tube‑size dependent)
Voltage: DC12V / DC24V
Power consumption: ≤ 5 W
Weight: 114 g
Operating environment: 0–45 °C; relative humidity < 85% RH
Rollers: Standard 3 rollers


Flow rates (ml/min)
DC12V / DC24V — 0.5–2 ml/min (tube 1×3 mm) — compatible with BPT, Silicone, A60‑F, Viton
DC12V / DC24V — 2–6 ml/min (tube 2×4 mm) — compatible with BPT, Silicone, A60‑F, Viton
DC12V / DC24V — 4–15 ml/min (tube 3×5 mm) — compatible with BPT, Silicone, A60‑F, Viton


Dimensions
Refer to product dimension images on the product page for mechanical drawings and mounting dimensions.


Documents
Technical datasheet (PDF) available: LEFOO LFP102ADB product PDF (datasheet).


Applications

• HVAC, cleanrooms, refrigeration, building automation, water & wastewater, food & beverage, petrochemicals, machinery manufacturing & automation, engineering equipment, laboratory & medical devices, agriculture, home & commercial equipment, chemical processing, power & energy, appliances, AI integration.

Technical details

• Compatible tube materials: BPT, Silicone, A60‑F, Viton.
• Flow selection is determined by tube size; three standard tube sizes cover 0.5–15 ml/min.
• 3‑roller mechanism provides stable and even tube compression.
• Stainless steel mounting plate for industrial integration; custom mounting available on request.
