Peristaltic pump LFP202DB
for liquidswith DC motornormal priming

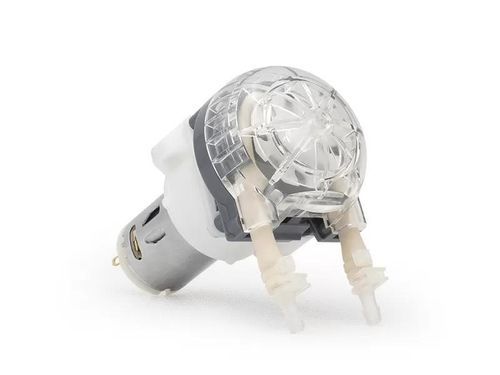

Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 2
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 3
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 4
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 5
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 6
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 7
Peristaltic pump - LFP202DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 8
Add to favorites
Compare this product
Go to the ZHEJIANG LEFOO CONTROLS CO., LTD website for more information

Characteristics

Technology
peristaltic
Fluid
for liquids
Operation
with DC motor
Priming
normal priming
Mobility
stationary
Material
stainless steel
Voltage
24 V, 12 V
Other characteristics
low-noise, easy tube loading, fixed-flow, low-power
Flow

Min.: 0.9 l/h
(0.23775 us gal/h)

Max.: 6.6 l/h
(1.74354 us gal/h)

Power

8 W
(0.01 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 45 °C
(113 °F)

Weight

140 g
(4.94 oz)

Description

Overview
  • Compact peristaltic pump for stable, fixed flow applications.
  • Low noise design with long service life.
  • Easy, tool‑free tube replacement for fast maintenance.


Specifications
  • Model: P202DB (commercial designation: LFP202DB)
  • Installation: Stainless steel mounting plate (standard; customizable)
  • Motor type: Brush DC motor
  • Control method: Power‑on operation
  • Function: Fixed flow rate
  • Working voltage: DC12V, DC24V
  • Power: ≤ 8W
  • Weight: 140 g
  • Operating environment: Temperature 0–45 ℃; Relative humidity <85% RH
  • Rollers: 2 rollers (standard)
  • Compatible tube types: BPT tube / Silicone


FLOW RATE (ml/min)
Voltage: DC12V, DC24V
15–45 ml/min — Tube size: 14# — Tube type: BPT / Silicone
55–110 ml/min — Tube size: 16# — Tube type: BPT / Silicone

Dimensions
Dimension drawings and images are available on the product page for physical measurements.

Technical features
  • Designed for precise, stable dosing at fixed flow rates.
  • Compact footprint and low power consumption (≤8W).
  • Standard stainless steel mounting plate for straightforward integration.
  • Quick tube change without tools reduces downtime.
