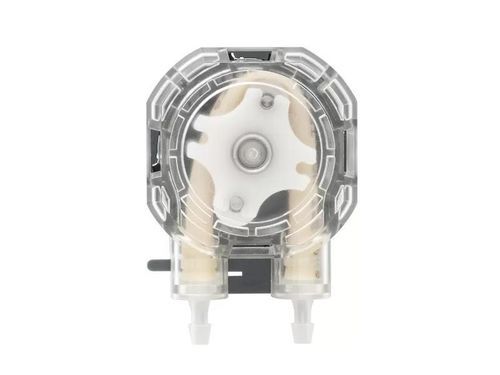

Peristaltic pump LFP203DB
for liquidswith DC motornormal priming

Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 2
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 3
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 4
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 5
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 6
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 7
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 8
Peristaltic pump - LFP203DB - ZHEJIANG LEFOO CONTROLS CO., LTD - for liquids / with DC motor / normal priming - image - 9
Add to favorites
Compare this product
Go to the ZHEJIANG LEFOO CONTROLS CO., LTD website for more information

Characteristics

Technology
peristaltic
Fluid
for liquids
Operation
with DC motor
Priming
normal priming
Mobility
stationary
Voltage
24 V, 12 V
Other characteristics
low-noise, bidirectional, fixed-speed, easy tube loading
Flow

Min.: 7.5 l/h
(1.98129 us gal/h)

Max.: 29.4 l/h
(7.76666 us gal/h)

Power

10 W
(0.01 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 45 °C
(113 °F)

Weight

160 g
(5.64 oz)

Description

Overview
  • High flow in a compact footprint.
  • Low noise, long service life, high dosing precision.
  • Bidirectional rotation (forward/reverse).
  • Tool-free tube replacement for fast maintenance.


Specifications (summary)
Model: LFP203DB (spec table: P203DB) | Installation: stainless steel mounting plate (standard; customizable) | Motor type: brushed DC motor | Control: power-on operation | Function: fixed flow rate | Supply voltage: DC12V, DC24V | Power: ≤10W | Weight: 160 g | Operating conditions: 0–45 °C; relative humidity <85% RH | Rollers: standard 2 rollers (4 rollers optional)

Flow rate (ml/min) — ranges by tube size
DC12V/DC24V — Tube 3×5 mm: 125–305 ml/min; Tube 16#: 110–315 ml/min; Tube 4×6 mm: 190–490 ml/min
Compatible tube materials: BPT/silicone, A60-F, Viton

Dimensions & documentation
Detailed dimensional drawings and mounting views are available on the product page. Technical datasheet (PDF) available on request.

Notes
Customizable options include installation method and roller count. Product supports bidirectional operation and tool-free tube replacement.
