- ZHEJIANG LEFOO CONTROLS CO., LTD

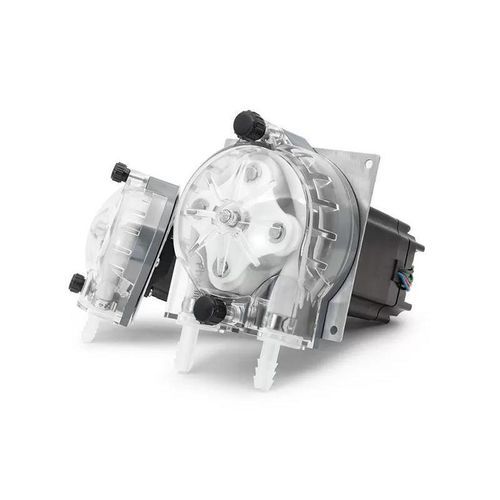

Peristaltic pump LFP403STfor liquidsstepper motor-drivennormal priming
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- for liquids
- Operation
- stepper motor-driven
- Priming
- normal priming
- Mobility
- stationary
- Material
- stainless steel
- Voltage
- 24 V
- Other characteristics
- adjustable, low-noise, variable-speed, with electronic control, bidirectional
- Flow
Max.: 123 l/h
(32.49316 us gal/h)Min.: 0.6 l/h
(0.1585 us gal/h)- Power
24 W
(0.03 hp)- Fluid temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Weight
1,350 g
(47.62 oz)
Description
Product Overview
Specifications
FLOW RATE (ml/min)
Notes
Technical Features
- Support PLC control and RS485 communication
- Real-time start/stop with adjustable speed
- Forward and reverse rotation
- Low-noise, quiet and stable operation
- Installation method customizable (stainless steel mounting plate standard)
Specifications
- Model: P403ST
- Installation method: Stainless steel mounting plate as standard (customizable)
- Motor type: Stepper motor
- Control method: Driver control (optional driver; PLC control available)
- Function: Precise adjustable flow control
- Working voltage: DC24V
- Power: ≤24W
- Weight: 1350 g
- Working environment: Temperature 0–45℃; Relative Humidity <85%RH
- Rollers: Standard with 2 rollers + 2 guide wheels
FLOW RATE (ml/min)
- DC24V — 10–850 ml/min (Tube size: 25#) — Compatible tube types: BPT Tube, Silicone Tube, A60-F, Viton Tube
- DC24V — 10–1400 ml/min (Tube size: 17#) — Compatible tube types: BPT Tube, Silicone Tube, A60-F, Viton Tube
- DC24V — 10–2050 ml/min (Tube size: 18#) — Compatible tube types: BPT Tube, Silicone Tube, A60-F, Viton Tube
Notes
- The pump supports driver-based control and can be optionally integrated with PLC control. Installation method and tube types can be customized according to application requirements.
Technical Features
- Precise and adjustable flow control
- Low-noise operation for stable process integration
- Bidirectional rotation for flexible dosing
- Customizable installation and tube compatibility for different industrial applications
