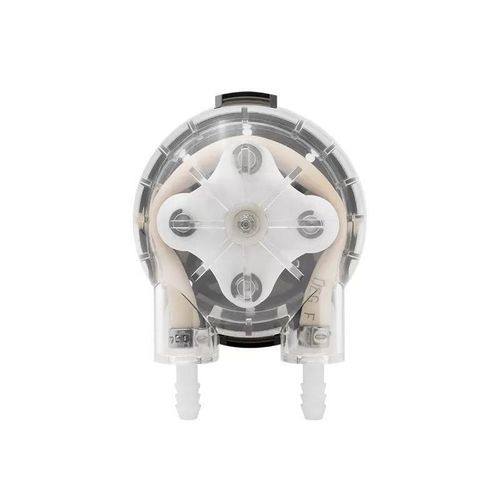

Peristaltic pump LFP402ST

DCflow controlstainless steel

Overview

• Support PLC control, RS485 communication.
• Real-time start and stop, adjustable speed.
• Positive and negative rotation.
• Low noise, quiet and stable.
• Installation method can be customized.

Specifications (table)
Model | Installation Method | Motor Type | Control Method | Function | Working Voltage | Power | Weight | Working Environment | Rollers
P402ST | Stainless steel mounting plate as standard (customizable) | Stepper motor | Driver control (Optional with Driver, PLC control) | Precise, adjustable flow control | DC24V | ≤24W | 1400g | Temperature 0-45℃; Relative Humidity <85%RH | Standard with 2 rollers + 2 training wheels

Flow Rate (table)
FLOW RATE: ml/min
Voltage | Flow Range | Tube Size | Tube Type
DC24V | 10–1900 | 35# | BPT Tube / Silicone Tube / A60-F / Viton Tube
DC24V | 10–2350 | 36# | BPT Tube / Silicone Tube / A60-F / Viton Tube

Technical characteristics / specifications

• Model: LFP402ST (table shows P402ST entry).
• Installation method: Stainless steel mounting plate as standard; customizable installation method available.
• Motor type: Stepper motor.
• Control method: Driver control; optional with driver and PLC control supported; RS485 communication available.
• Functions: Precise and adjustable flow control; real-time start/stop; reversible rotation (positive & negative).
• Working voltage: DC 24V.
• Power consumption: ≤24W.
• Weight: 1400 g.
• Operating environment: Temperature 0-45℃; Relative humidity <85% RH.
• Rollers: Standard configuration includes 2 rollers + 2 training wheels.
• Flow ranges (depending on tube size): 10–1900 ml/min (35# tube) and 10–2350 ml/min (36# tube).
• Compatible tube types: BPT Tube, Silicone Tube, A60-F, Viton Tube.
