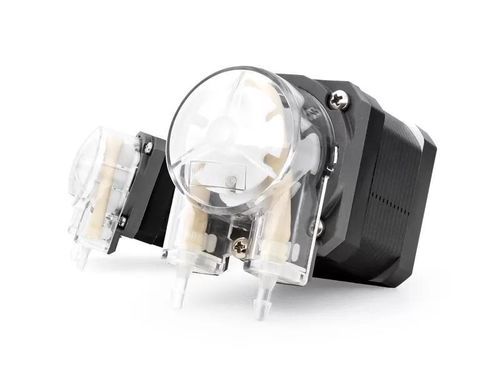

Peristaltic pump LFP101ST

for liquidsstepper motor-drivennormal priming

Product overview
LEFOO LFP101ST is a DC stepper motor peristaltic pump for automated dosing and fluid transfer; it supports PLC integration and RS485 communication and offers precise, adjustable flow with quiet operation and configurable mounting options.

Key features

• Supports PLC control and RS485 communication
• Real-time start/stop with adjustable speed
• Forward and reverse (bidirectional) rotation
• Low noise, stable operation
• Customizable installation and mounting methods

Specifications
Model: P101ST (table); Commercial model: LFP101ST
Motor type: Stepper motor
Control method: Driver control (optional driver); PLC control via driver; RS485 interface
Working voltage: DC24V
Power: ≤12W
Weight: 375 g
Working environment: Temperature 0–45°C; relative humidity <85% RH
Rollers: Standard 2 rollers (options: 3 or 6)
Tube types: BPT tube / silicone tube

Flow rates (ml/min) at DC24V

• Tube 1*3: 1–16
• Tube 14#: 1–32
• Tube 2*4: 1–65
• Tube 3*5: 1–120
• Tube 16#: 1–130
• Tube 4*6: 1–200

Dimensions & documents
Dimension drawings and installation images available on the product page; product datasheet (PDF) available for download.

Technical summary

• Commercial name: LFP101ST; Table model: P101ST
• Precise adjustable flow control with bidirectional rotation
• Designed for automated dosing applications requiring PLC/RS485 integration
