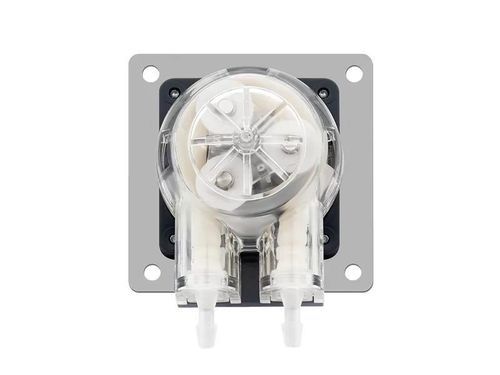

Peristaltic pump LFP104DB

for liquidswith DC motornormal priming

Product overview

• Very low noise level suitable for a range of installation environments.
• Planetary reduction gearbox for stable rotor speed and consistent flow.
• Anti-reversal and anti-drop design to secure tubing during operation.
• Tool-free, quick tube replacement for simplified maintenance.

Specifications

• Model: LFP104DB
• Installation: Stainless steel mounting plate (standard), customizable
• Motor type: Brushed DC motor
• Control method: Power-on operation
• Function: Fixed flow rate
• Working voltage: DC12V, DC24V
• Power consumption: ≤ 8W
• Weight: 114 g
• Operating environment: Temperature 0–45 °C; Relative humidity <85% RH
• Rollers: Standard 3 rollers

FLOW RATE: ml/min
Voltage: DC12V, DC24V

• Tube 1×3 mm — 12–35 ml/min
• Tube 2×4 mm — 40–106 ml/min
• Tube 3×5 mm — 80–190 ml/min
• Tube 4×6 mm — 160–270 ml/min

Dimensions
Refer to product dimension drawings and images for exact measurements and mounting layout.

Documents
PDF datasheet available from the manufacturer.

Applications

• HVAC and refrigeration systems
• Cleanroom and laboratory dosing
• Building automation and water treatment
• Medical devices and OEM fluid handling

Technical characteristics / specifications

• Brand: LEFOO
• Model: LFP104DB
• Pump type: Peristaltic pump with DC motor
• Compatible tube materials: BPT, Silicone, A60-F, Viton
• Flow control: Fixed flow determined by tube size
• Mounting material: Stainless steel mounting plate
• Power supply: DC12V or DC24V
• Max power: ≤ 8W
• Weight: 114 g
• Operating temperature: 0–45 °C
• Relative humidity: <85% RH
