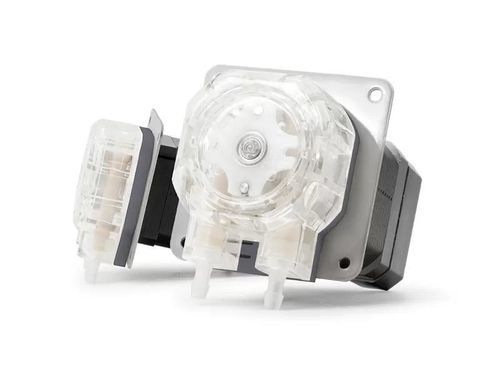

Peristaltic pump LFP203STfor liquidsstepper motor-drivennormal priming
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- for liquids
- Operation
- stepper motor-driven
- Priming
- normal priming
- Mobility
- stationary
- Material
- stainless steel
- Voltage
- 24 V
- Other characteristics
- compact, adjustable, low-noise, variable-speed, with electronic control, programmable, for integration
- Flow
Max.: 0.015 m³/h
(0.52972 ft³/h)Min.: 0.00006 m³/h
(0.00212 ft³/h)- Power
10 W
(0.01 hp)- Fluid temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Weight
475 g
(16.76 oz)
Description
Overview
Specifications
Model: P203ST
Installation method: Stainless steel mounting plate (standard, customizable)
Motor type: Micro stepper motor
Control method: Driver control (optional PLC/RS485 integration)
Function: Precise adjustable flow control
Working voltage: DC24V
Power: ≤10W
Weight: 475 g
Operating environment: Temperature 0–45°C; Relative humidity <85% RH
Standard rollers: 2 (optional 4)
Available tube materials: BPT, Silicone, A60-F, Viton
FLOW RATE: ml/min
Voltage: DC24V
Flow range 1: 1–150 (Tube size: 16#) — Tube types: BPT / Silicone / A60-F / Viton
Flow range 2: 1–150 (Tube size: 3×5) — Tube types: BPT / Silicone / A60-F / Viton
Flow range 3: 1–250 (Tube size: 4×6) — Tube types: BPT / Silicone / A60-F / Viton
Characteristics / Technical specifications
- Supports PLC control and RS485 communication for integration in automated systems.
- Real-time start/stop and adjustable speed for precise dosing.
- Forward and reverse rotation available.
- Low-noise operation; compact and stable design.
- Customizable installation method (stainless steel mounting plate standard).
Specifications
Model: P203ST
Installation method: Stainless steel mounting plate (standard, customizable)
Motor type: Micro stepper motor
Control method: Driver control (optional PLC/RS485 integration)
Function: Precise adjustable flow control
Working voltage: DC24V
Power: ≤10W
Weight: 475 g
Operating environment: Temperature 0–45°C; Relative humidity <85% RH
Standard rollers: 2 (optional 4)
Available tube materials: BPT, Silicone, A60-F, Viton
FLOW RATE: ml/min
Voltage: DC24V
Flow range 1: 1–150 (Tube size: 16#) — Tube types: BPT / Silicone / A60-F / Viton
Flow range 2: 1–150 (Tube size: 3×5) — Tube types: BPT / Silicone / A60-F / Viton
Flow range 3: 1–250 (Tube size: 4×6) — Tube types: BPT / Silicone / A60-F / Viton
Characteristics / Technical specifications
- Commercial reference: LFP203ST
- Internal model: P203ST
- Brand: LEFOO
- Motor: Micro stepper motor
- Control: Driver control; optional PLC control and RS485 communication
- Voltage: DC24V
- Power consumption: ≤10W
- Weight: 475 g
- Operating temperature: 0–45°C
- Relative humidity: <85% RH
- Rollers: Standard 2 (option for 4)
- Tube compatibility: BPT, Silicone, A60-F, Viton (sizes: 16#, 3×5, 4×6)
- Flow ranges depend on tube size (up to 250 ml/min)
- Installation: Stainless steel mounting plate standard (customizable)
