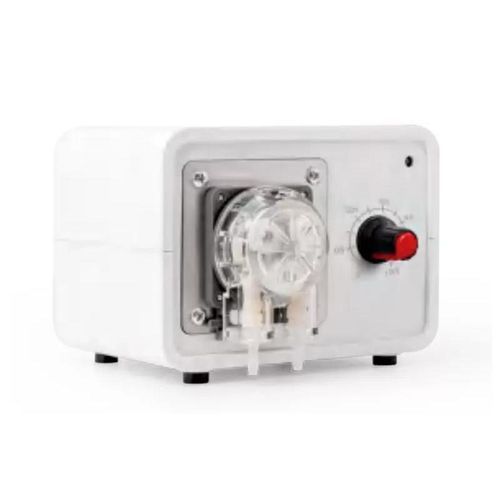

Peristaltic pump LFPC104DB

for liquidswith DC motornormal priming

Overview

• Compact peristaltic pump system for precise, adjustable low-flow dosing
• Quick tube replacement and low maintenance using a 3-roller head
• Table or wall mounting for flexible integration

Specifications (summary)
Model: LFPC104DB (PC104DB)
Installation: Table type or Wall type
Motor: Brushed DC motor
Control: Driver / Control (speed adjustable)
Working voltage: DC 24V
Power consumption: ≤ 6 W
Weight: 265 g
Operating environment: Temperature 0–45 ℃; Relative humidity <85% RH
Rollers: Standard 3 rollers

Flow rate (ml/min)
Voltage: DC24V
1×3 — 3–30 ml/min (tube size 1×3)
2×4 — 10–115 ml/min (tube size 2×4)
3×5 — 20–185 ml/min (tube size 3×5)
Compatible tube materials: BPT, Silicone, A60-F, Viton

Dimensions
Refer to product dimension images and technical drawings for detailed measurements and mounting outlines.

Applications

• Laboratory dosing and sampling
• Water and wastewater treatment dosing
• Food & beverage metering
• Industrial process dosing and HVAC systems

Technical specifications

• Model designation: LFPC104DB
• Mounting: table or wall
• Control: driver/control for speed regulation
• Power supply: DC 24V
• Power consumption: ≤ 6 W
• Weight: 265 g
• Operating temperature: 0–45 ℃
• Relative humidity: <85% RH
• Flow ranges depend on tube size: 1×3 → 3–30 ml/min; 2×4 → 10–115 ml/min; 3×5 → 20–185 ml/min
• Compatible tubing: BPT, Silicone, A60-F, Viton

Documentation
Datasheet and dimensional drawings (PDF) available for download; contact supplier for ordering codes and spare tubing options.
