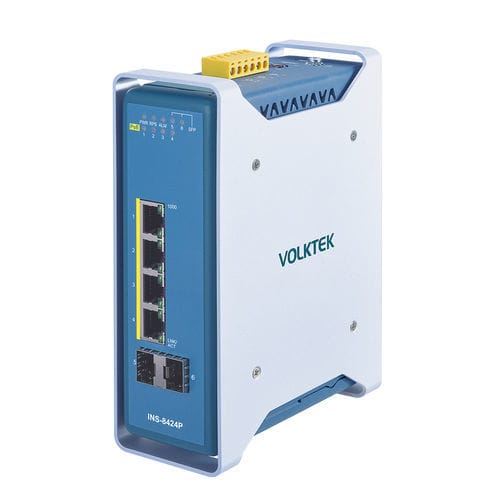

非管理型イーサネットスイッチ INS-8424P

6 ポートProfiNetEtherNet/IP

Product FeaturesFour 10/100/1000 PoE+ PSE downlink ports (up to 30W power supply per port)Two GbE SFP uplink ports (for long-distance high-speed fiber connection and cascade to control center)VLAN pass-through (transfers VLAN packets without dropping or modifying, preventing packet loss)Terminal block with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP40 aluminum housingProduct OverviewThe INS-8424P is an industrial unmanaged switch featuring a plug-and-play design, ideal for surveillance and internet access point applications. It is equipped with four 10/100/1000 PoE+ downlink ports and one FX/GbE multi-rate SFP uplink, meeting diverse network connectivity needs. It can supply power to powered devices (PD) up to 100 meters away, eliminating the need for multiple power outlets and reducing costs. All PSE and LAN ports automatically detect compatible devices, requiring no additional installation. The SFP port provides noise-free long-distance transmission for stable communication. Port-based QoS prioritizes traffic, especially for Ethernet/IP, PROFINET, and GOOSE packets, applying industrial QoS. The VLAN pass-through function enables continuous packet forwarding, ensuring smooth data flow between different network segments. Additionally, the LLDP filter allows system monitoring and visualization of the switch on the network topology map, making management easier.The INS-8424P provides reliable network connectivity for industrial applications and is an excellent solution for various harsh environments. Encased in an IP40 aluminum case, it protects the device from tools and external hazards. It operates in a wide temperature range from -40°C to 75°C (-40°F to 167°F) with high thermal conductivity. The redundant power system quickly notifies via relay alarm in case of power failure. The use of a 4-pin mini DIN connector ensures secure attachment even in environments with strong vibrations, reducing the risk of disconnection.FunctionsPoE Application: Building smart surveillance systems and wireless access points.The INS-8424P complies with Type 1 and Type 2 PoE (IEEE 802.3at), supplying up to 30W per port. Its simple plug-and-play feature allows immediate interaction with powered devices (PD) upon connection, requiring no additional configuration. This enables rapid deployment and greatly reduces operational effort.VLAN Pass-Through: Ability to stably and continuously transfer data packets.The VLAN pass-through function is highly effective in unmanaged switches to prevent data transmission loss. It allows VLAN-tagged frames to pass through as is, improving network stability and reliability.Power Failure Protection: Redundant power input and relay output alarm.The INS-8424P ensures power redundancy by connecting to two power sources and an alarm simultaneously. If the main power fails, it automatically switches to the backup power, and an alarm notifies technicians of the power failure. This minimizes system downtime and ensures stable operation. Reliable power management guarantees continuous operation of critical equipment and services.Design for Harsh Environments:The INS-8424P is built with industrial-grade components and has obtained international safety certifications such as CE, FCC, and ROHS. This guarantees reliability and durability, making it suitable for use in harsh environments. It meets high-quality standards and is a reliable network solution for various applications. With a wide operating temperature range (-40°C~75°C / -40°F~167°F), it is suitable for use in diverse harsh environments. Its high resistance to interference ensures reliable operation even around various machinery.SpecificationsStandards:IEEE 802.3 (10BASE-T)IEEE 802.3u (100BASE-TX)IEEE 802.3ab (1000BASE-T)IEEE 802.3z (1000BASE-SX/LX)IEEE 802.3 (Nway Auto-negotiation)IEEE 802.3x (Flow Control)IEEE 802.3af (Power over Ethernet)IEEE 802.3at (Power over Ethernet Plus)IEEE 802.1p (Class of Service)Interface:Ports: 4 x 10/100/1000BASE-T (PoE RJ45), 2 x GbE SFP SlotsDIP Switch: Primary/Redundant Power Voltage Drop Alarm settingLED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACTPower:Input Voltage: Primary inputs: 48V~57V DC, Redundant inputs: 48V~57V DCConnection: Terminal Block, Mini-DINPower Consumption: System: 10W, PoE Power Budget: 120WAlarm Relay: One relay output, 1A @ 24V DCMechanical and Environment:Housing: Aluminum (IP40 Protection)Mounting: DIN-RailOperating Temperature: -40°C~75°C (-40°F~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5 to 95% RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)Weight: 795 g (1.75 lb)Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)ModelDescriptionINS-8424PUnmanaged 4 x 10/100/1000 PoE+ & 2 x GbE SFP Switch*Specifications are subject to change without notice.Key Features / Technical Specifications:Plug-and-play industrial unmanaged switch4 x 10/100/1000 PoE+ downlink ports (up to 30W per port)2 x GbE SFP uplink portsVLAN pass-throughRedundant power and alarm relayOperating temperature: -40°C~75°CIP40 aluminum housingDIN-Rail mountingCE, FCC, ROHS certifiedPower input: 48V~57V DCSystem power consumption: 10W, PoE budget: 120WWeight: 795gDimensions: 57.3 x 175 x 126.4 mm
