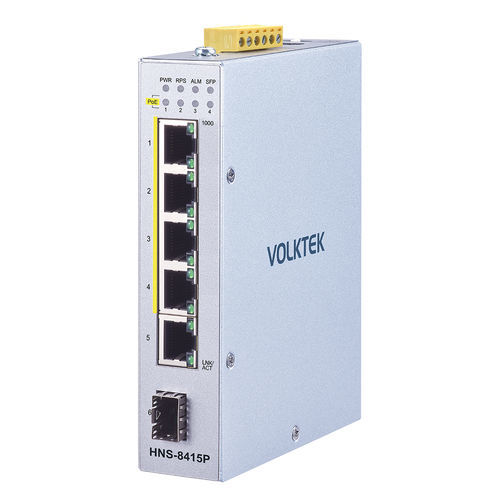

非管理型イーサネットスイッチ HNS-8415P

5 ポートギガビットLAN

Product FeaturesFour 10/100/1000 PoE+ ports (up to 30W power supply per port)One 10/100/1000 RJ45 port and one GbE SFP uplink port (for long-distance high-speed fiber connections)VLAN pass-through (transfers VLAN packets without dropping or modifying them, preventing packet loss)Terminal block with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -10°C to 60°C (14°F~140°F), IP40 metal housingProduct OverviewThe HNS-8415P is an unmanaged switch that can be used with simple plug-and-play, ideal for surveillance systems and internet access point applications. It is equipped with four 10/100/1000 PoE+ downlink ports, one 10/100/1000 RJ45 downlink port, and one GbE SFP uplink port.This PoE+ switch reduces costs by eliminating the need to install individual power outlets for each PD (powered device) up to a distance of 100 meters. All PSE (power sourcing equipment) and LAN ports use auto-negotiation technology to detect compatible devices without additional installation requirements. The SFP port provides noise-free fiber optic transmission over long distances. VLAN pass-through enables continuous packet transfer.The HNS-8415P is designed for harsh indoor environments without air conditioning and is enclosed in an IP40 metal case. This robust design protects the device from tools and external hazards. The operating temperature range is -10°C to 60°C (14°F to 140°F), making it suitable for various environmental conditions. Additionally, it features a redundant power system to ensure stable operation of connected devices, and a relay alarm that quickly alerts in the event of a power failure. This function improves system reliability and ensures the continuous operation of critical equipment, providing peace of mind.FunctionsPoE Applications: Building Smart Surveillance Systems and Wireless Access PointsThe HNS-8415P complies with Type 1 and Type 2 PoE (IEEE 802.3at), supplying up to 30W per port. It is ideal for energy-efficient applications. The simple "plug-and-play" feature allows immediate interaction with powered devices (PD) as soon as they are connected, with no additional configuration required. This enables rapid deployment and greatly reduces operational effort.VLAN Pass-Through: Stable and Continuous Data Packet TransferThe VLAN pass-through function is highly effective in unmanaged switches to prevent data transmission loss. This feature allows VLAN-tagged frames to pass through as is, improving network stability and reliability.Power Failure Protection: Redundant Power Input and Relay Output AlarmThe HNS-8415P ensures power redundancy by connecting to two power sources and an alarm simultaneously. If the main power fails, it automatically switches to the backup power, and an alarm notifies technicians of the power failure. This mechanism minimizes system downtime and ensures stable operation at all times. Reliable power management guarantees continuous operation of critical equipment and services.Designed to Withstand Harsh EnvironmentsThe HNS-8415P is built with industrial-grade components and has obtained international safety certifications such as CE, FCC, and ROHS. This ensures reliability and durability, making it safe to use even in harsh environments. It meets high quality standards and is suitable as a reliable network solution for various applications. It can withstand a wide temperature range from -10°C to 60°C (14°F to 140°F), making it suitable for use in various harsh environments. It also has high resistance to interference, ensuring reliable operation even around diverse machinery.SpecificationsStandards: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab, 1000BASE-T, IEEE 802.3z, 1000BASE-SX/LX, IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.1p Class of ServiceInterface: 4 x 10/100/1000BASE-T (PoE RJ45), 1 x 10/100/1000BASE-T (RJ45), 1 x GbE SFP Slot; DIP Switch: Primary/Redundant Power Voltage Drop Alarm setting; LED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACTPower: Input Voltage: Primary inputs: 48V~57V DC, Redundant inputs: 48V~57V DC; Connection: Terminal Block, Mini-DIN; Power Consumption: System: 10W, PoE Power Budget: 120W; Alarm Relay: One relay output: 1A @ 24V DCMechanical and Environment: Housing: Metal (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 515 g (1.14 lb); Dimension (WxHxD): 31 x 136.3 x 105 mm (1.22 x 5.37 x 4.13 in)Ordering InformationModelDescriptionHNS-8415PUnmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x GbE SFP SwitchCE, FCC, ROHS certifiedRedundant power input and relay alarmDIN-Rail mountingIP40 metal housingOperating temperature: -10°C~60°CPoE+ support (up to 30W per port)VLAN pass-throughAuto-negotiation technologyPower consumption: System 10W, PoE budget 120WWeight: 515gDimensions: 31 x 136.3 x 105 mm
