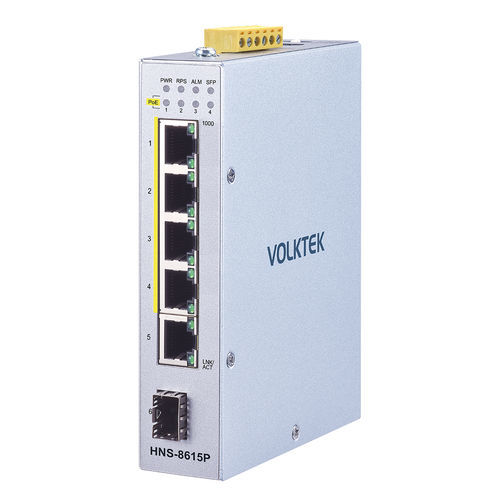

管理型イーサネットスイッチ HNS-8615P

5 ポートDIP屋内用

Product Features4 x 10/100/1000 PoE+ ports (up to 30W per port) and 1 x 10/100/1000 RJ45 port1 x FX/GbE SFP uplink port (for long-distance connections)Optimized network performance with flow control and QoSTerminal block with redundant power and alarm relay contact for non-stop operationOperating temperature range: -10°C to 60°C (14°F~140°F), IP40 metal housingProduct OverviewThe HNS-8615P is a feature-rich industrial managed switch optimized for indoor surveillance and internet access point applications. It is equipped with 4 x 10/100/1000 PoE+ downlink ports, 1 x 10/100/1000 RJ45 downlink port, and 1 x GbE SFP uplink port. With up to 4 PSE ports, it can supply power to multiple remote powered devices (PDs). Control via web browser makes remote device management very easy. The SFP port enables long-distance fiber transmission, providing stable communication with low noise. The HNS-8615P features a topology map function for visualizing the status of connected devices and PoE functionality to power devices such as surveillance cameras and access points. Rate limiting and QoS functions ensure network stability. All ports automatically set optimal connection settings, ensuring compatibility with other devices. Modbus TCP integration facilitates easy integration with industrial Ethernet applications and smooth communication between devices.The HNS-8615P uses highly durable industrial components, providing stable performance even under harsh environmental conditions. The IP40-rated aluminum enclosure protects the device from dust and tools. Its design is resistant to vibration and shock, making it ideal for industrial environments. It can withstand free fall and operates reliably under tough conditions. The device supports a temperature range of -10°C to 60°C (14°F to 140°F), ensuring stable operation in various environments. The terminal block's redundant power and alarm relay contact guarantee non-stop operation, and the alarm notifies technicians of power failures, enhancing system reliability and safety.FunctionsHigh Power Budget for PoE Network DevicesThe HNS-8615P complies with PoE+ (IEEE 802.3at), supplying up to 30W per PoE port. It supports plug-and-play connection for high-power devices.Remote Management FunctionsThe management interface offers PD alive check and PoE scheduling for effective remote device control, improving operational efficiency and reliability.PD Alive Check - Remotely check device status and quickly respond to issues. Devices can be rebooted remotely, reducing travel costs and time.PD Scheduling - Maximize power supply efficiency by scheduling power delivery to critical devices (e.g., surveillance cameras, access points) at specific times.DIN Rail Power Adapter (AC-DC) and Terminal BlockThe DIN rail power adapter converts AC to DC power for devices requiring DC input. The 6-pin terminal block provides terminals for AC input and DC output. Combining the adapter and terminal block enhances power management efficiency and reliability in industrial applications.Compact Size and Easy InstallationThe automatic MDI/MDI-X function simplifies connections and network construction, making it easy to connect to various switches and hubs and efficiently design or expand networks.Efficient Network Monitoring and Proactive FeaturesSNMP enables centralized management of multiple network devices. QoS prioritizes different traffic types, ensuring important data always has sufficient bandwidth. IGMP ensures multicast traffic is delivered only to necessary devices, preventing unnecessary bandwidth consumption.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3az (EEE), IEEE 802.1ab (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication)Interface: 4 x 10/100/1000BASE-T (PoE RJ45), 1 x 10/100/1000BASE-T (RJ45), 1 x FX/GbE SFP Slot, DIP Switch (Power voltage drop alarm setting), LED Panel (PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary inputs: 48~57V DC, Redundant inputs: 48~57V DC; Connection: Terminal Block, Mini-DIN; Power Consumption: 10W; Alarm Relay: PoE Power Budget: 120W, One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Metal (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 515 g (1.1 lb); Dimension (WxHxD): 31 x 136.3 x 105 mm (1.22 x 5.37 x 4.13 in)Order InformationModelDescriptionHNS-8615PL2+ Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x FX/GbE SFP Industrial SwitchKey Features / Technical Specifications4 x 10/100/1000 PoE+ ports (up to 30W per port)1 x 10/100/1000 RJ45 port1 x FX/GbE SFP uplink portPoE Power Budget: 120WDIN-Rail mountingMetal housing (IP40 protection)Operating temperature: -10°C~60°CRedundant power inputAlarm relay outputSNMP, QoS, IGMP, Modbus TCP supportDimensions: 31 x 136.3 x 105 mmWeight: 515 g
