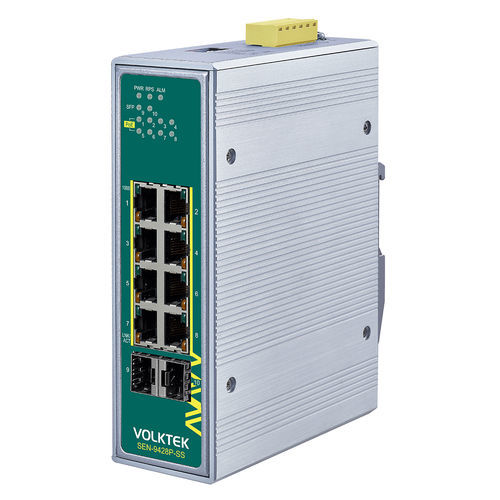

非管理型イーサネットスイッチ SEN-9428P-24V-SS

10 ポートギガビットイーサネットProfiNet

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power supply per port)2 x GbE SFP uplink ports (for long-distance connection and cascade to control center)Supports QoS function via 802.1p tag, allowing prioritization of critical control data such as EIP (EtherNet/IP), PROFINET, and GOOSE in industrial applications, minimizing latency.Wide input voltage range (24V–57V) for diverse environmentsCompliant with international standards IEEE 1613 and IEC 61850-3, providing reliability and safety for harsh power supply systemsOperating temperature range: -40°C to 75°C (-40°F to 167°F), IP30 aluminum housingProduct OverviewThe SEN-9428P-24V-SS is an unmanaged industrial switch with 8-port 10/100/1000 PoE+ downlinks and 2-port GbE SFP uplinks, designed to meet the thermal and environmental requirements of substation surveillance and WAP applications. This PoE+ switch features 8 PSE (Power Sourcing Equipment) ports, providing plug-and-play power to all connected PD (Powered Devices). Fiber ports enable fast recovery and reliable long-distance gigabit Ethernet transmission to other switches or control centers.To maintain stable video and data transmission, the device uses rate limiting and QoS (Quality of Service), prioritizing industrial applications using protocols such as EIP, PROFINET, and GOOSE. The device also allows changing data priority and speed settings via DIP switches.Constructed with industrial-grade components, the device is housed in a high thermal conductivity IP30 aluminum case to protect against tools and hazards. The wide input voltage range of 24V–57V eliminates the need for additional power outlets, enabling operation in various substation applications. For reliability, redundant power and alarm relay contacts on the terminal block ensure continuous operation and alert in case of power failure. Designed to withstand vibration, shock, drop, and temperature ranges from -40°C to 75°C (-40°F to 167°F), it is suitable for harsh environments.FunctionsRedundant Power System: Supports simultaneous power supply from two different sources, such as SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail AC-DC adapters, with power failure alarm.Innovative Power Boost Technology: DC-DC converter boosts power from 24V to 57V DC for high-power PoE/PoE+ devices.High Power Supply for PoE Devices: Provides up to 30W/port (IEEE 802.3af/at) for PoE+ devices.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.1p (Class of Service)Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 2 x FX/GbE SFP Slots; DIP Switch (Power voltage drop alarm, Broadcast storm control, Port-based QoS, Fiber port speed setting); LED Panel (PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary 24~57V DC, Redundant 24~57V DC; Connection: Terminal Block; Power Consumption: System 15W, PoE Power Budget: 124W @ 24V DC, 240W @ 48V DC; Alarm Relay: 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 protection); Mounting: DIN-Rail, Wall Mount/Rack-mount; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 930 g (2.1 lb); Dimensions: 50 x 161.5 x 119.9 mm (1.97 x 6.35 x 4.72 in)Order InformationModelDescriptionSEN-9428P-24V-SSUnmanaged 8 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Substation ApprovalTechnical Specifications / Features:8 x 10/100/1000 PoE+ ports (up to 30W per port)2 x GbE SFP uplink portsWide input voltage: 24V–57V DCOperating temperature: -40°C to 75°CIP30 aluminum housingRedundant power systemDIN-Rail, Wall Mount/Rack-mountIEEE 1613 & IEC 61850-3 compliantQoS support for industrial protocolsDimensions: 50 x 161.5 x 119.9 mmWeight: 930 g
