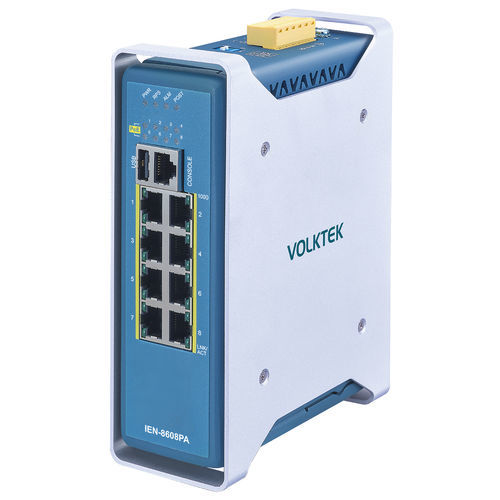

管理型イーサネットスイッチ IEN-8608PA-24V

8 ポートレベル 2DINレール

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power per port)Equipped with 1 console port for command line interface and 1 USB port, supporting firmware upgrades. Also features secure configuration storage and log file download capabilities.Terminal block with redundant power and alarm relay contacts ensures non-stop operation.Wide input voltage range (24V–57V), ideal for factory floors and general surveillance applications.Operating temperature range: -40˚C~75˚C (-40°F~167°F), IP40 aluminum housing.Product OverviewThe IEN-8608PA-24V is a high-performance managed 8-port 10/100/1000 GbE PoE+ downlink switch, primarily designed for factory connectivity and security applications. This industrial-grade managed PoE+ switch features 8 PSE (Power Sourcing Equipment) ports and manages all remote powered devices (PD) using automated functions controlled via a web browser. The RJ45 console port enables network troubleshooting in case of network issues. The USB port is intended for saving configuration files, system log files, and firmware upgrades, reducing network downtime and operational costs. The device protects the network according to secure cybersecurity standards. The network topology map function visualizes the network of connected devices. Designed for use in harsh industrial environments, it is housed in a high thermal conductivity IP40 aluminum case to protect the device from tools and hazards. The operating temperature range is -40°C to 75°C (-40°F to 167°F). The wide input voltage range of 24V to 57V allows operation in factory ecosystems and other commercial/residential security applications without the need for additional power outlets. A redundant power supply system and relay alarm are used to alert in case of power failure, ensuring reliable operation of connected devices.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (Electromagnetic Interference), ESD (Electrostatic Discharge), power surges, overvoltage, overcurrent, and reverse polarity.High power budget for PoE devices: Provides up to 30W output per port, supplying power over the same cable used for network traffic.Intelligent PoE+ features: Allows power allocation to various ports on an hourly or weekly schedule to enable or disable connected devices.Redundant power system: Designed to be powered simultaneously from two different power sources, such as the SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC-DC power adapters. If one power source fails, the other continues to function, improving system reliability. Includes an alarm function to notify administrators in case of power failure.Efficient network monitoring and management: Supports SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.Bandwidth management to prevent network malfunctions: Utilizes QoS (Quality of Service) mechanisms to assign and control network traffic priorities.Redundant ring technology for rapid recovery in surveillance systems: Xpress Ring detects link failures in milliseconds and recovers quickly using advanced redundant ring technology.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage and Drop Alarm setting), LED Panel (PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary/Redundant inputs: 24V~57V DC; Connection: Terminal Block; Power Consumption: System: 15W, PoE Power Budget: 124W @ 24V DC, 240W @ 48V DC; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 955 g (2.1 lb); Dimensions: 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)Order InformationModelDescriptionIEN-8608PA-24VL2+ Managed 8 x 10/100/1000 PoE+ SwitchTechnical Specifications / Features:8 x 10/100/1000 PoE+ ports (up to 30W per port)1 x RJ45 Console Port1 x USB PortRedundant power supply and alarm relayWide input voltage: 24V–57V DCOperating temperature: -40°C~75°CIP40 aluminum housingDIN-Rail mountingSNMP, RMON, QoS, Xpress Ring supportDimensions: 57.3 x 175 x 126.4 mmWeight: 955 g
