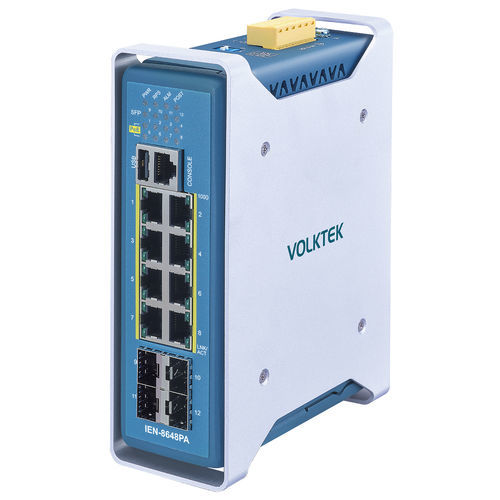

管理型イーサネットスイッチ IEN-8648PA-24V

12 ポートDINレール標準

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power supply per port)4 x GbE multi-rate SFP uplink ports (2 for cascade, 2 for uplink to control center)1 console port for command line interface and 1 USB port for firmware upgrades, secure configuration, and log file downloadsTerminal block with redundant power and alarm relay contacts for non-stop operationWide input voltage range (24V–57V), ideal for factory floors and general surveillance applicationsOperating temperature range: -40°C~75°C (-40°F~167°F), IP40 aluminum housingProduct OverviewThe IEN-8648PA-24V is a high-performance managed switch designed primarily for factory floor connectivity and security applications. It features 8 PSE (Power Sourcing Equipment) ports and allows efficient management of all remote Powered Devices (PD) via automation functions controlled from a web browser. The RJ45 console port enables easy troubleshooting of outbound network issues, while the USB port is dedicated to saving configuration and system log files and upgrading firmware, minimizing network downtime and reducing operational costs. The switch protects the network according to secure cybersecurity standards and visualizes the network topology for easy understanding of the overall configuration. Rate limiting and QoS (Quality of Service) improve traffic and prioritize data for efficient communication. Recovery functions support rapid network restoration, enhancing reliability and performance.Designed for harsh industrial environments, the IEN-8648PA-24V is housed in an IP40 aluminum case, protecting the device from tools and external hazards. It operates in a wide temperature range (-40°C to 75°C) and supports a wide input power range (24V to 57V), allowing effective operation in factory ecosystems and commercial/residential security applications without additional power outlets. Redundant power systems and relay alarms ensure stable operation and rapid problem resolution, greatly improving system availability.FunctionsQuick upgrade and backup via USB: The USB port is designed for fast firmware upgrades, Syslog backup, and configuration, eliminating the need for expensive laptops. A USB flash drive speeds up installation and maintenance.Rugged design for harsh environments: Built with industrial-grade components, tested in-house, and certified by international safety agencies (CE, FCC, ROHS) for reliable operation in extreme conditions (-40°C to 75°C).Always-on operation: Designed to connect to two power supplies and alarms simultaneously. If the main power fails, the switch automatically uses the backup and triggers an alarm.Third-party device compatibility and speed adaptability: Multi-rate ports support 10/100/1000 Mbps (copper) and 100/1000 Mbps (fiber), adapting to third-party device requirements without additional adapters.Remote PD management: Compliant with PoE+ (IEEE 802.3 af/at), provides up to 30W/port, limits power to only what is needed, and protects against power spikes. Management interface supports PD alive check and PoE scheduling for centralized remote control.PD Alive Check – Monitors device status, restarts devices as needed, and reduces costly site visits.PD Scheduling – Schedules power supply to PDs, reduces power consumption, and allocates sufficient power to critical applications.Eco-friendly and energy-saving: Supports IEEE 802.3az Energy Efficient Ethernet to reduce power consumption during low link utilization.Loop-free and fast recovery: Equipped with RSTP, ERPS, Xpress Ring protocols for automatic backup paths, ensuring loop-free transmission and sub-millisecond recovery in case of link failure.Smart topology map for network overview: Provides a bird's-eye view of the network for easy troubleshooting. Discovers third-party devices and displays interface/link status with color codes. Users can customize icons and backgrounds.Real-time notifications to personal devices: Syslog reports on network anomalies and status are sent via email for 24/7 monitoring.Protection against cyber attacks: Device access is protected by login passwords and supports TACACS+ and RADIUS security protocols to prevent unauthorized access and data leaks.SpecificationsStandards: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab, 1000BASE-T, IEEE 802.3z, 1000BASE-SX/LX, IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x Flow Control, IEEE 802.3ad Link Aggregation, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.1AB LLDP, IEEE 802.1ad QinQ, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1X Port Authentication, IEEE 1588v2 PTPInterface: 8 x 10/100/1000BASE-T (PoE RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB PortDIP Switch: Primary/Redundant (PWR/RPS) power voltage drop alarm setting, Per Port connectivity status alarm settingLED Panel: PWR, RPS, ALM, POST, PoE, 1000, SFP, LNK/ACTPower: Input Voltage: Primary/Redundant 24~57V DC; Connection: Terminal Block; Power Consumption: System 18W, PoE Power Budget: 124W @ 24VDC, 240W @ 48VDC; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 1,005 g (2.22 lb); Dimensions: 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)Order InformationModelDescriptionIEN-8648PA-24VL2+ Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP SwitchKey Features / Technical Specifications8 x 10/100/1000 PoE+ ports (up to 30W per port)4 x GbE SFP uplink ports1 x RJ45 console port, 1 x USB portRedundant power and alarm relayWide input voltage: 24V–57V DCOperating temperature: -40°C~75°CIP40 aluminum housingDIN-Rail mountingDimensions: 57.3 x 175 x 126.4 mmWeight: 1,005 g
