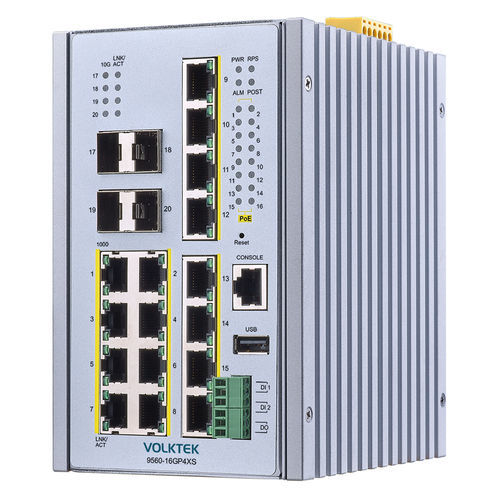

管理型イーサネットスイッチ 9560-16GP4XS

20 ポートレベル 2ギガビットイーサネット

Product Overview9560-16GP4XS is an industrial switch equipped with 16-port 10/100/1000 BASE-T PoE+ RJ45 and 4-slot 1G/10G SFP+. It features one RJ45 type console port and one USB port for firmware updates and configuration maintenance. This switch is constructed with a robust housing and components, capable of withstanding high vibration and shock, and supports a wide operating temperature range of -40°C to 70°C (-40°F to 158°F).This is not just a general industrial switch, but one specially designed and developed for harsh and extreme industrial environments. With an aluminum housing, redundant DC power input, and high-performance components, it is ideal for extreme industrial automation environments.Each port of the 9560 series is equipped with two LEDs to indicate link status, transmission speed, and link/activity status. It also provides relay output for event alarms, and the built-in LED triggers an alarm to notify administrators in case of power failure. Engineers can easily check the hardware status by simply checking the LEDs, making troubleshooting easy.The 9560-16GP4XS is specially designed to meet the increasing needs of network-powered devices (PDs) that require more power, including multi-channel (802.11a/b/g/n) wireless LAN access points, PTZ (pan-tilt-zoom) speed dome network cameras, and other PoE network devices.FeaturesSNMP Remote Management: Advanced SNMP remote management allows network administrators to monitor and manage the switch from anywhere, facilitating troubleshooting and optimizing network performance. Administrators can monitor switch status, change settings, and receive real-time alerts remotely.IGMP Snooping: Designed for factory automation, this feature precisely monitors IGMP packets and intelligently forwards traffic only to interested receivers, reducing multicast traffic and optimizing bandwidth usage.ACL: L2/L3/L4 Access Control List (ACL) enables precise traffic control, allowing administrators to selectively forward or block packets based on MAC address, IP address, port number, etc., enhancing network security and performance.Multiple 10G Fiber Ring Ports: Provides network redundancy and fault tolerance by enabling redundant fiber rings, automatically switching in case of failure to prevent communication interruption and minimize downtime.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3ae (10GBase-SR/LR/ER), IEEE 802.3 Nway (Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (EEE, Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1Q (VLAN tagging), IEEE 802.1X (Network Access Control), IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.1D (Spanning Tree Protocol), IEEE 802.1w (Rapid Spanning Tree Protocol), IEEE 802.1p (Class of Service)Interface:Ports: 16 x 10/100/1000 RJ45, 4 x 1G/10G SFP+, 1 x RS232 Console Port, 1 x USB PortDIP Switch: Primary/Redundant PowerLED Panel: PWR, RPS, ALM, POST, 1000, 10G, LNK/ACTDigital Input: 2 x pairs, Dry ContactDigital Output: Alarm Relay output 24VDC, 1APower:Input Voltage: Primary inputs: 48~57VDC, Redundant Inputs: 48~57VDCPower Consumption: System: 22W, PoE Power Budget: 240WMechanical and Environment:Housing: Aluminum (IP30 Protection)Operating Temperature: -40˚C~70˚C (-40°F~158°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating/Storage Humidity: 5 to 95% RH (non-condensing)Weight: 1,295 g (2.85 lb)Dimension (WxHxD): 100 x 160 x 140 mm (3.93 x 6.3 x 5.51 in)Ordering InformationModelDescription9560-16GP4XSManaged 16 x 10/100/1000 RJ45 PoE+ & 4 x 1G/10G SFP+ Industrial Switch, Aluminum16 x 10/100/1000 PoE+4 x 1G/10G SFP+1 x RS232 Console1 x USBOperating Temperature Range: -40°C to 70°C (-40°F to 158°F)USB-40°C-70°C30WAuto NegotiationAuto MDI/MDIXDIN RailCode RedundancyConsole portIP Code 30PoE+QoSModbusNEMA TS2Topology MapTechnical Specifications / FeaturesModel: 9560-16GP4XSManaged 16 x 10/100/1000 RJ45 PoE+ & 4 x 1G/10G SFP+ Industrial Switch, AluminumSNMP Remote ManagementIGMP SnoopingACL (L2/L3/L4 Access Control List)Multiple 10G Fiber Ring PortsRedundant DC Power InputWide Operating Temperature: -40°C to 70°CAluminum Housing (IP30 Protection)PoE Power Budget: 240WSystem Power Consumption: 22WWeight: 1,295 gDimensions: 100 x 160 x 140 mm
