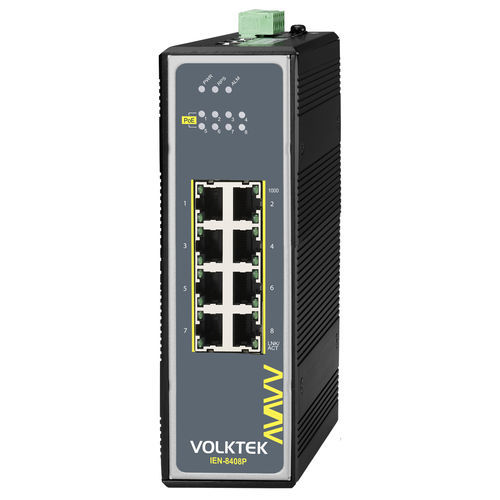

非管理型イーサネットスイッチ IEN-8408P-24V

8 ポートProfiNetEtherNet/IP

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power supply per port)Supports QoS function via 802.1p tag, allowing prioritization of critical control data such as EIP (EtherNet/IP), PROFINET, and GOOSE in industrial applications to minimize latencyWide input voltage range (24V–57V), ideal for factory floors and general surveillance applicationsTerminal block equipped with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housingProduct OverviewINS-8408P-24V is an industrial unmanaged switch featuring a simple plug-and-play design, ideal for surveillance and internet access point applications. It is equipped with 8 x 10/100/1000 PoE+ downlink ports, enabling simultaneous power supply and data communication to multiple powered devices (PDs). It can supply power to PDs up to 100 meters away, reducing the need for multiple power outlets and lowering costs. All PSE and LAN ports automatically detect compatible devices, requiring no additional installation. Port-based QoS allows traffic prioritization, especially for industrial QoS on Ethernet/IP, PROFINET, and GOOSE packets. VLAN passthrough ensures continuous packet forwarding and smooth data flow between different network segments. The LLDP filter allows for monitoring and visualizing the switch on a network topology map, simplifying management.INS-8408P-24V is designed to withstand harsh industrial environments. The IP30 aluminum case protects the device from tools and external hazards. It supports a temperature range of -40°C to 75°C (-40°F to 167°F) and offers high thermal conductivity for reliable performance in extreme conditions. The wide input power range (24V–57V) allows operation in factory ecosystems and other commercial or residential security applications without additional power outlets. The redundant power system ensures stable operation of connected devices, and a relay alarm provides immediate notification in case of power failure, enhancing system reliability and ensuring operation of critical applications.FunctionsPoE Applications: Supports Type 1 and Type 2 PoE (IEEE 802.3at), supplying up to 30W per port. Plug-and-play functionality enables immediate interaction with powered devices (PDs) without additional configuration, allowing rapid deployment and reducing operational effort.VLAN Passthrough: Enables stable and continuous data packet transfer, allowing VLAN-tagged frames to pass through unmanaged switches, improving network stability and reliability.Network Performance Optimization: Real-time data transmission to control centers and other devices is prioritized using QoS and flow control, enhancing performance.Industrial Protocol Priority: Prioritizes traffic for Ethernet/IP, PROFINET, and GOOSE, ensuring critical data packets (e.g., surveillance video and audio) are transmitted without delay, improving real-time application performance and overall network efficiency.LLDP Filtering: Prevents misdetection and flapping issues in the network, ensuring stable operation by avoiding frequent device connection/disconnection.Power Failure Protection: Redundant power input and relay output alarm ensure automatic switching to backup power and immediate notification in case of power failure, minimizing downtime and ensuring continuous operation of critical equipment and services.Rugged Design: Built with industrial-grade components and certified for CE, FCC, and ROHS, ensuring reliability and durability in harsh environments. Operates in a wide temperature range (-40°C~75°C / -40°F~167°F) and is highly resistant to interference.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.1p (Class of Service)Interface: 8 x 10/100/1000BASE-T PSE Ports; DIP Switch (Power voltage drop alarm setting (PWR & RPS), Broadcast storm control setting (STORM), Port-based QoS setting (QoS on P1 & P2)); LED Panel (PWR, RPS, ALM, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary inputs: 24~57V DC, Redundant inputs: 24~57V DC; Connection: Terminal Block; Power Consumption: System: 12W, PoE Power Budget: 124W @ 24V DC, 240W @ 48V DC; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 920 g (2 lb); Dimension (WxHxD): 50 x 162 x 120 mm (1.97 x 6.36 x 4.72 in)Ordering InformationModelDescriptionIEN-8408P-24VUnmanaged 8 x 10/100/1000 PoE+ SwitchOperating temperature: -40°C-75°C30W per portDIN Rail mountingIP Code 30PoE+Redundant PowerROHS CE FC certifiedRequest by ProjectTechnical Specifications8 x 10/100/1000BASE-T PoE+ portsIEEE 802.3af/at compliantPower input: 24~57V DC (primary and redundant)PoE power budget: 124W @ 24V DC, 240W @ 48V DCOperating temperature: -40°C~75°CIP30 aluminum housingDIN-Rail mountingDimensions: 50 x 162 x 120 mmWeight: 920 gCE, FCC, ROHS certified
