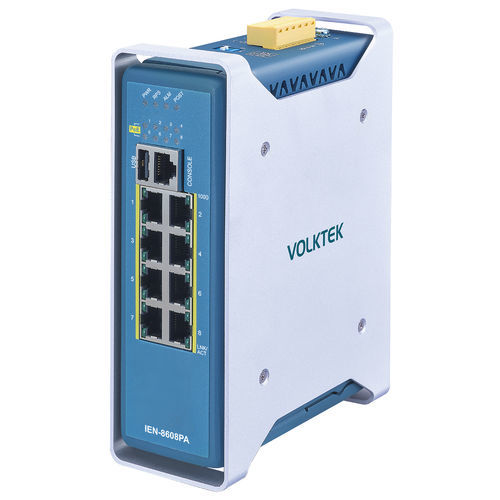

管理型イーサネットスイッチ IEN-8608PA

8 ポートレベル 2DINレール

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power supply per port)Equipped with 1 console port for command line interface and 1 USB port, supporting firmware upgrades. Also features secure configuration retention and log file download capabilities.Terminal block with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP40 aluminum housingProduct OverviewThe IEN-8608PA is a high-performance industrial managed switch designed for surveillance applications with advanced management features. This switch provides 8-port 10/100/1000GbE PoE+ downlinks, supplying power to connected devices while enabling remote management and configuration. With up to 8 PSE ports, it can power multiple remote powered devices (PDs). Control via web browser makes remote device management very easy. The IEN-8608PA is equipped with an RJ45 console port for easy outbound network troubleshooting in case of network issues, enabling quick problem resolution. The USB port is designed for saving configuration files, system log files, and firmware upgrades, minimizing network downtime and enabling rapid maintenance and troubleshooting. Efficient management also contributes to reduced operational costs. The IEN-8608PA protects the network according to secure cybersecurity standards, safeguarding critical data. The network topology map function allows visualization of connected devices, making it easier to grasp the overall configuration. Additionally, rate limiting and QoS (Quality of Service) improve traffic and prioritize data for efficient communication. Recovery functions enable rapid network restoration as needed, supporting stable operation and enhancing overall network reliability and performance.The IEN-8608PA is designed to withstand harsh industrial environments. Housed in an IP40 aluminum case, it protects the device from tools and external hazards. It supports a wide temperature range from -40°C to 75°C (-40°F to 167°F) and, with high thermal conductivity, ensures stable operation even under severe conditions. A redundant power system ensures stable operation of connected devices, and in the event of a power failure, a relay alarm provides rapid notification, enhancing system reliability and ensuring continuous operation of critical equipment.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.High power budget for PoE devices: Provides up to 30W output per port, supplying power over the same cable used for network traffic.Intelligent PoE+ features: Allows scheduling of power allocation to various ports on an hourly or weekly basis to enable or disable connected devices.Redundant power system: Designed to receive power from two different sources simultaneously, such as SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC-DC power adapters. If one power source fails, the other continues to function, improving system reliability. Alarm notification in case of power failure enables quick response by administrators.Efficient network monitoring and management: Supports SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.Bandwidth management to prevent network malfunctions: Utilizes QoS (Quality of Service) mechanisms to assign and control network traffic priorities.Redundant ring technology for rapid recovery in surveillance systems: The IEN-8608PA's Xpress Ring detects link failures in milliseconds and recovers quickly using advanced redundant ring technology.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage and Drop Alarm setting), LED Panel (PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary/Redundant inputs: 48V~57V DC; Connection: Terminal Block; Power Consumption: System: 15W, PoE Power Budget: 240W; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 955 g (2.1 lb); Dimensions: 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)ModelDescriptionIEN-8608PAL2+ Managed 8 x 10/100/1000 PoE+ Switch*Specifications are subject to change without notice.8 x 10/100/1000 PoE+ ports (up to 30W per port)1 x RJ45 Console Port1 x USB PortRedundant power and alarm relayOperating temperature: -40°C~75°CIP40 aluminum housingDIN-Rail mountingSystem power consumption: 15WPoE power budget: 240WWeight: 955 gDimensions: 57.3 x 175 x 126.4 mm
