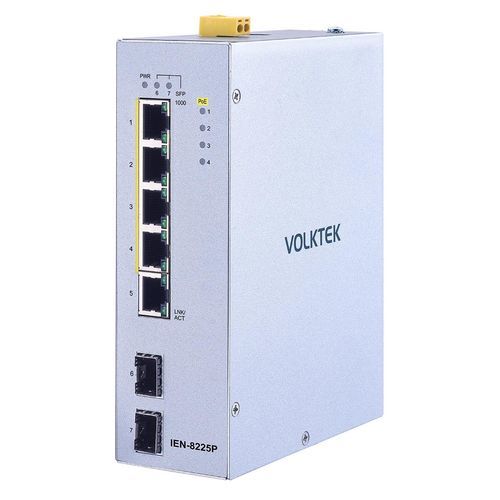

非管理型イーサネットスイッチ IEN-8225P-24V

6 ポートProfiNetEtherNet/IP

Product Features4 x 10/100/1000 PoE+ ports (up to 30W per port) and 1 x 10/100/1000 RJ45 port2 x GbE SFP uplink ports (for long-distance connection and cascade to control center)Supports QoS function via 802.1p tag, prioritizing critical control data such as EIP (EtherNet/IP), PROFINET, and GOOSE for industrial applications, minimizing latencyWide input voltage range (24V–57V), ideal for factory floors and general surveillance applicationsOperating temperature range: -10°C to 60°C (14°F~140°F), IP40 metal housing* Maximum operating temperature range by UL: -10˚C to 60˚C (14°F to 140°F)Product OverviewThe IEN-8225P-24V is an unmanaged switch ideal for surveillance and internet access point applications, featuring a simple plug-and-play design. It is equipped with 4 x 10/100/1000 PoE+ downlink ports, 1 x 10/100/1000 RJ45 downlink, and 2 x GbE SFP uplinks, meeting diverse connectivity needs. It can supply power to powered devices (PD) up to 100 meters away, reducing the need for multiple power outlets and saving costs. With auto-negotiation technology, all PSE and LAN ports automatically detect compatible devices, requiring no additional installation. The SFP ports provide noise-free long-distance transmission for stable communication. Port-based QoS allows traffic prioritization, especially for Ethernet/IP, PROFINET, and GOOSE packets, applying industrial QoS. VLAN passthrough enables continuous packet forwarding and smooth data flow between different network segments. The LLDP filter allows system monitoring and visualization of the switch on the network topology map, making management easier.The IEN-8225P-24V is designed for use in harsh environments without air conditioning. It is enclosed in an IP40 metal case, protecting the device from tools and hazards. It operates stably in a temperature range of -10°C to 60°C (14°F to 140°F). The wide input power range (24V–57V) allows operation in factory ecosystems and other commercial and residential security applications without the need for additional power outlets. The switch offers two power input methods: a 2-pin terminal block and a 4-pin mini DIN, ensuring secure fixation and preventing disconnection even during strong vibrations.FunctionsPoE Application: Supports Type 1 and Type 2 PoE (IEEE 802.3at), up to 30W per port. Plug-and-play for easy deployment and operation.VLAN Passthrough: Allows VLAN-tagged frames to pass through, improving network stability and reliability.Network Performance Optimization: QoS and flow control functions prioritize data transmission for improved performance.Industrial Protocol Priority: Prioritizes Ethernet/IP, PROFINET, and GOOSE traffic for real-time applications.LLDP Filtering: Prevents device misdetection and flapping, ensuring stable network operation.Power Failure Protection: Dual power inputs and relay output alarm for redundancy and minimized downtime.Rugged Design: Built with industrial-grade components, certified by CE, FCC, ROHS, and operates in -10°C to 60°C environments.SpecificationsStandards: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab, 1000BASE-T, IEEE 802.3z, 1000BASE-SX/LX, IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet plus, IEEE 802.1p Class of ServiceInterface: 4 x 10/100/1000BASE-T (PoE), 1 x 10/100/1000BASE-T (RJ45), 2 x GbE SFP Slots, LED Panel: PWR, SFP, PoE, 1000, LNK/ACTPower: Input Voltage: Adapter/Terminal block inputs: 24V~57V DC; Connection: Terminal Block, Mini-DIN; Power Consumption: System 14W, PoE Power Budget 120WMechanical and Environment: Housing: Metal (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -10°C~60°C; Storage Temperature: -40°C~85°C; Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 780 g (1.71 lb); Dimensions: 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)Order InformationModelDescriptionIEN-8225P-24VUnmanaged 4 x 10/100/1000 PoE+ & 2 x 10/100/1000 RJ45 SwitchKey Features / Technical Specifications4 x 10/100/1000 PoE+ ports (up to 30W per port)1 x 10/100/1000 RJ45 port2 x GbE SFP uplink portsWide input voltage: 24V–57V DCOperating temperature: -10°C to 60°CIP40 metal housingDIN-Rail mountingSystem power consumption: 14WPoE power budget: 120WDimensions: 50 x 160 x 120 mmWeight: 780 gCertifications: CE, FCC, ROHS
