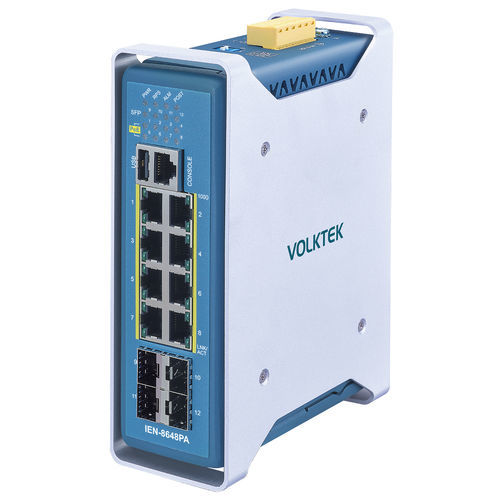

管理型イーサネットスイッチ IEN-8648PA

12 ポートレベル 2DINレール

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power supply per port)4 x GbE SFP uplink ports (2 for cascade, 2 for uplink to control center)1 console port for command line interface, USB port supports firmware upgrades, secure configuration, and log file downloadsTerminal block with redundant power and alarm relay contacts ensures non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP40 aluminum housingProduct OverviewThe IEN-8648PA is a high-performance managed 8-port 10/100/1000 GbE PoE+ downlink and 4 GbE SFP uplink switch, primarily designed for surveillance applications requiring remote and rapid management. This industrial managed PoE+ switch features 8 PSE (Power Sourcing Equipment) ports, allowing management of all remote powered devices (PD) via automation functions controlled from a web browser. The SFP ports provide long-distance, noise-free fiber optic transmission. The RJ45 console port enables external network troubleshooting in case of network issues. The USB port is intended for saving configuration files, system log files, and firmware upgrades, reducing network downtime and operational costs. The device protects the network according to secure cybersecurity standards. The network topology map function visualizes the network of connected devices.This switch is built with industrial-grade components and enclosed in IP40 aluminum, protecting the device from tools and hazards. It is designed to withstand vibration, shock, free fall, and temperatures from -40°C to 75°C (-40°F to 167°F), suitable for most indoor and outdoor applications. The reset button restores the device to factory settings if issues occur after configuration. To ensure reliability, redundant power and alarm relay contacts on the terminal block allow continued operation and send alerts in case of power failure.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (Electromagnetic Interference), ESD (Electrostatic Discharge), power surges, overvoltage, overcurrent, and reverse connection.High power budget for PoE devices: 30W power supply per port using the same cable as network traffic.Intelligent PoE+ features: Power allocation to various ports can be scheduled by hour or week to enable or disable connected devices.Redundant power system: Simultaneous power supply from two different sources such as SDR-480P-48 and IRA-120/IRA-160 DIN-rail mountable AC-DC adapters, with power failure alarm.Efficient network monitoring and management: SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.Bandwidth management to prevent network failures: QoS (Quality of Service) mechanisms for priority assignment and network traffic control.Redundant ring for rapid recovery of surveillance systems: Xpress Ring detects and recovers link failures within milliseconds.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB PortDIP Switch: Primary/Redundant Power Voltage Drop Alarm settingLED Panel: PWR, RPS, ALM, POST, SFP, PoE, 1000, LNK/ACTPower: Input Voltage: Primary inputs: 48~57V DC, Redundant inputs: 48~57V DC; Connection: Terminal Block; Power Consumption: System: 18W, PoE Power Budget: 240W; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 1,005 g (2.22 lb); Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)Order InformationModelDescriptionIEN-8648PAL2+ Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP SwitchKey Features / Technical Specifications8 x 10/100/1000 PoE+ ports (30W per port)4 x GbE SFP uplink ports1 x RJ45 console port, 1 x USB portRedundant power and alarm relay contactsOperating temperature: -40°C~75°CIP40 aluminum housingDIN-rail mountingSystem power consumption: 18WPoE power budget: 240WWeight: 1,005 gDimensions: 57.3 x 175 x 126.4 mm
