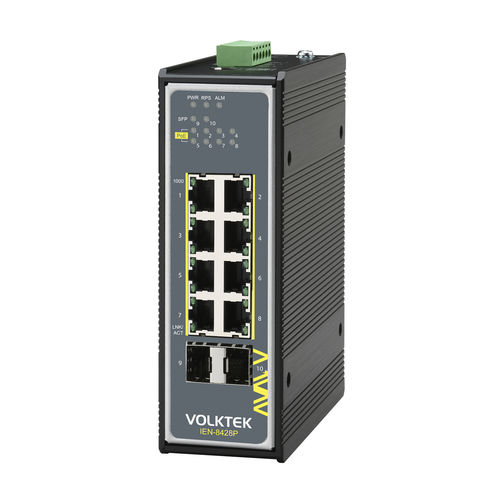

非管理型イーサネットスイッチ IEN-8428P-24V

10 ポートEtherNet/IPワイヤレス

Product Features8 x 10/100/1000 PoE+ ports (up to 30W power supply per port)2 x GbE SFP uplink ports (for long-distance connection and cascading to control center)Supports QoS function via 802.1p tag, allowing prioritization of critical control data such as EIP (EtherNet/IP), PROFINET, and GOOSE for industrial applications, minimizing latencyWide input voltage range (24V–57V), ideal for factory floors and general surveillance applicationsTerminal block equipped with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housing* Project-based requests onlyProduct OverviewThe IEN-8428P-24V is a highly convenient industrial switch designed for indoor surveillance systems and internet access points. It is unmanaged, equipped with 8-port 10/100/1000 PoE+ downlinks, and supports 2-port FX/GbE multi-rate SFP uplinks, enabling flexible network configurations. The PoE+ function can supply power to powered devices (PD) up to 100 meters away, eliminating the need for additional power outlets and significantly reducing installation costs and wiring complexity. Furthermore, auto-negotiation technology allows all PSE and LAN ports to automatically detect compatible devices, simplifying setup and ensuring smooth connections, which is especially useful in environments with mixed devices. The SFP ports provide noise-free long-distance transmission for stable communication. Port-based QoS allows traffic prioritization, particularly for Ethernet/IP, PROFINET, and GOOSE packets, applying industrial QoS. VLAN passthrough enables continuous packet forwarding and smooth data flow between different network segments. Additionally, the LLDP filter allows system monitoring and visualization of the switch on the network topology map, making management easier.The IEN-8428P-24V is designed to withstand harsh industrial environments. It is housed in an IP30 aluminum case, protecting the device from tools and external hazards. It supports a temperature range from -40°C to 75°C (-40°F to 167°F) and features high thermal conductivity for reliable performance even in extreme conditions. The wide input power range (24V–57V) allows operation in factory ecosystems and other commercial and residential security applications without the need for additional power outlets. To ensure stable operation of connected devices, it is equipped with a redundant power system and a relay alarm that quickly alerts in case of power failure, enhancing system reliability and ensuring continuous operation of critical equipment.FunctionsPoE Applications: Supports Type 1 and Type 2 PoE (IEEE 802.3at), providing up to 30W per port. Plug-and-play functionality allows immediate interaction with powered devices (PD) upon connection, enabling easy and quick deployment without additional configuration.VLAN Passthrough: Ensures stable and continuous data packet transfer, allowing VLAN-tagged frames to pass through unmanaged switches, improving network stability and reliability.Network Performance Optimization: Real-time data transmission to control centers and other devices is prioritized using QoS and flow control, enhancing performance.Industrial Protocol Prioritization: Prioritizes Ethernet/IP, PROFINET, and GOOSE traffic, ensuring critical data packets (e.g., surveillance camera video/audio) are transmitted without delay, improving real-time application performance and overall network efficiency.LLDP Filtering: Prevents misdetection and flapping issues in the network by filtering LLDP, ensuring stable network operation.Power Failure Protection: Redundant power input and relay output alarm ensure automatic switching to backup power and immediate notification in case of power failure, minimizing downtime and ensuring continuous operation of critical equipment.Rugged Design: Built with industrial-grade components and certified for CE, FCC, and ROHS, ensuring reliability and durability in harsh environments. Wide operating temperature range (-40°C~75°C / -40°F~167°F) and high resistance to interference make it suitable for various demanding applications.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.1p (Class of Service), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet)Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 2 x 100FX/GbE SFP Slots; DIP Switch for power voltage drop alarm, broadcast storm control, port-based QoS, fiber port speed; LED Panel: PWR, RPS, ALM, POST, SFP, PoE, 1000M, LNK/ACTPower: Input Voltage: 24V~57V DC (primary and redundant); Terminal Block connection; Power Consumption: System 13W, PoE Power Budget: 124W @ 24V DC, 240W @ 48V DC; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Aluminum housing (IP30 Protection); DIN-Rail mounting; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 950 g (2.1 lb); Dimensions: 50 x 162 x 120 mm (1.97 x 6.36 x 4.72 in)Order InformationModelDescriptionIEN-8428P-24VUnmanaged 8 x 10/100/1000 PoE+ & 2 x FX/GbE SFP SwitchKey Features / Technical Specifications8 x 10/100/1000 PoE+ ports (up to 30W per port)2 x GbE SFP uplink portsWide input voltage: 24V–57V DCRedundant power and alarm relayOperating temperature: -40°C~75°CIP30 aluminum housingDIN-Rail mountingCE, FCC, ROHS certifiedDimensions: 50 x 162 x 120 mmWeight: 950 g
