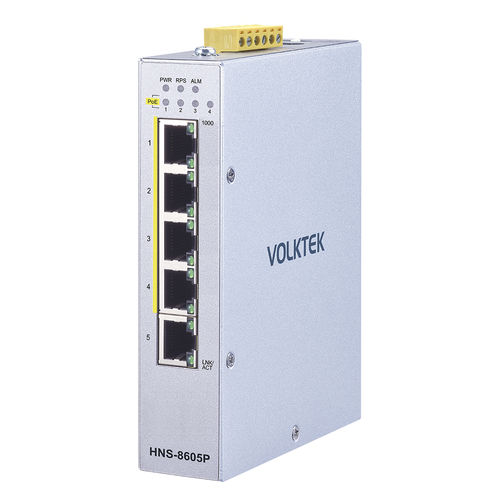

管理型イーサネットスイッチ HNS-8605P

5 ポートDINレールDIP

Product Features4 x 10/100/1000 PoE+ ports (up to 30W per port) and 1 x 10/100/1000 RJ45 portOptimized network performance with flow control and QoSTerminal block with redundant power and alarm relay contacts for non-stop operationOperating temperature range: -10°C to 60°C (14°F~140°F), IP40 metal housingProduct OverviewThe HNS-8605P is a feature-rich industrial managed switch optimized for indoor surveillance and internet access point applications. It features 4 x 10/100/1000 PoE+ uplink ports and 1 x 10/100/1000 RJ45 downlink. With up to 4 PSE (Power Sourcing Equipment) ports, it allows control via web browser. Automation features enable real-time monitoring and management of power supply to connected devices as needed.The HNS-8605P includes a topology map function for visual device status monitoring and PoE functionality to power devices such as surveillance cameras and access points. Rate limiting and QoS functions ensure network stability. All ports automatically optimize connection settings for compatibility with other devices. Modbus TCP support facilitates integration with industrial Ethernet applications and smooth device communication.Built with high-durability industrial components, the HNS-8605P delivers stable performance even under harsh environmental conditions. The IP40-rated aluminum enclosure protects against dust and tools. Its vibration- and shock-resistant design is ideal for industrial environments, and it can withstand free falls, ensuring reliability under tough conditions. It operates in a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for various environments. Redundant power and alarm relay contacts on the terminal block guarantee non-stop operation, with alarms to notify technicians of power failures, enhancing system reliability and safety.FunctionsHigh Power Budget for PoE Network DevicesThe HNS-8605P supports PoE+ (IEEE 802.3at), delivering up to 30W per PoE port. It supports high-power devices with simple plug-and-play connectivity.Remote Management FunctionsThe management interface offers PD alive check and PoE scheduling for effective remote device control, improving operational efficiency and reliability.PD Alive Check – Remotely monitor device status and quickly respond to issues. Devices can be rebooted remotely, reducing the need for on-site visits and saving time and costs.PD Scheduling – Schedule power supply to ensure sufficient power for critical devices (e.g., surveillance cameras, access points) at specific times.DIN Rail Power Adapter (AC-DC) and Terminal BlockThe DIN rail power adapter converts AC to DC for devices requiring DC power. The 6-pin terminal block provides connections for AC input and DC output. Combining the adapter and terminal block enhances power management efficiency and reliability in industrial applications.Compact Size and Easy InstallationThe auto MDI/MDI-X function simplifies connections and network setup, allowing easy integration with various switches and hubs for efficient network design and expansion.Efficient Network Monitoring and Proactive FeaturesSNMP enables centralized management of multiple network devices. QoS prioritizes different traffic types, ensuring critical data always has sufficient bandwidth. IGMP ensures multicast traffic is delivered only to necessary devices, preventing unnecessary bandwidth consumption.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1ab (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (QoS Prioritization), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus)Interface: 4 x 10/100/1000BASE-T (PoE RJ45), 1 x 10/100/1000BASE-T (RJ45), DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary/Redundant inputs: 48~57V DC; Power Consumption: 10W; PoE Power Budget: 120W; Alarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Metal (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 500 g (1.1 lb); Dimensions: 31 x 136.3 x 105 mm (1.22 x 5.37 x 4.13 in)ModelDescriptionHNS-8605PL2+ Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x FX/GbE SFP Industrial Switch*Specifications may change without notice.Key Features:4 x 10/100/1000 PoE+ ports (up to 30W per port)1 x 10/100/1000 RJ45 portRedundant power and alarm relayIP40 metal housingOperating temperature: -10°C to 60°CDIN-rail mountingPoE+ (IEEE 802.3at) supportQoS, VLAN, SNMP, IGMP support120W PoE power budgetWeight: 500gDimensions: 31 x 136.3 x 105 mm
