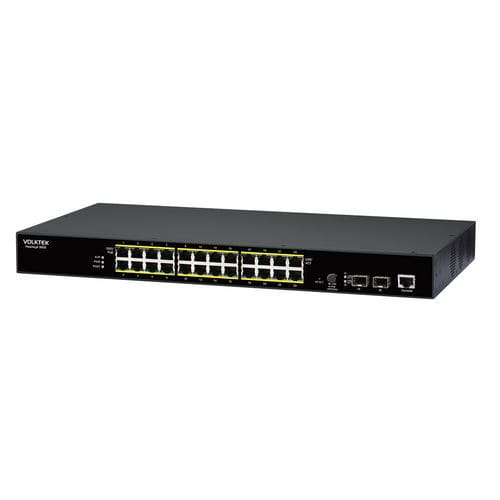

管理型イーサネットスイッチ 9005-24GP2GS series

24 PoEポートラック組み立て屋内用

Product Features24-port PoE+ PSE (high-density ports with smart control for IP cameras, WAPs, VoIP phones, and other PDs)2 FX/GbE multi-rate SFP uplink ports (for long-distance connections)Optimal connectivity for commercial facilities and perimeter security applicationsFanless design for silent operation and prevention of dust accumulation inside the deviceFlexible power input (AC or DC) to meet various PoE requirements according to user preferenceOperating temperature range: -40ºC to 70ºC (-40ºF to 158ºF) / -10ºC to 60ºC (14ºF to 140ºF) / 0ºC to 50ºC (32ºF to 122ºF), available upon user requestProduct OverviewThe 9005-24GP2GS is a managed high port-density switch with 24 10/100/1000BASE-T PoE+ downlinks and 2 FX/GbE multi-rate SFP uplinks, mainly designed for indoor building surveillance applications without air conditioning. It enables more convenient, compact, and cost-effective storage. This high port-density PoE+ switch centrally and smartly manages all remote powered devices (PDs). Its flexible power input (AC or DC) meets various PoE requirements and provides sufficient power to all connected PDs in large-scale networks. Plug-and-play functionality allows easy resolution of manual connection errors without technical intervention. Multi-rate SFP ports are used for long-distance fiber connections to control centers and for ring and cascade connections. The passive cooling system ensures silent operation and supports temperature tolerance in industrial and hardened commercial environments, while preventing dust accumulation common in fan-integrated devices. The switch is built with industrial-grade components, enclosed in IP30, and protects the device from tools and hazards. It is designed to withstand vibration, shock, free fall, and varying temperatures in diverse environments.FunctionsConnect up to 24 devices with a single interfacePoE applications: smart surveillance and wireless access points. Compliant with Type 1 and Type 2 PoE (IEEE 802.3 at), providing up to 30W per port for energy-efficient applications. Plug-and-play allows immediate interaction with devices upon PD connection. The switch powers surveillance systems with 24 ports, covering an entire floor.Remote PD management from the control room: The switch management interface uses PD control functions (PD alive check, PoE scheduling) to centrally control remote devices.PD Alive Check - Checks the live status of devices, restarts them if necessary, reducing costly trips to remote locations and saving valuable time.PD Scheduling - Schedules power supply to PDs, reducing power consumption and allocating sufficient power to critical applications, saving operational costs.Protection against cyber attacks: Setting a login password ensures only authorized users can access and configure the device. Security is enhanced with protocols such as TACACS+ and RMON to protect against network intrusion and data leakage.Loop-free and fast recovery: Factory processes are time-sensitive and must avoid sudden system interruptions due to loops. The device supports ring protocols like RSTP and ERPS, ensuring loop-free transmission and providing automatic backup paths for rapid recovery in milliseconds if an active link fails.Network overview with smart topology map: Provides OT and IT users with a comprehensive view for easy problem identification and troubleshooting. The switch uses smart technology to discover third-party devices, their interfaces, and link path statuses with tri-color codes (green, amber, red). Users can also customize icons and background images for the map.Protected hardware monitoring: Fiber transmission in industrial environments faces conditions that may adversely affect device performance. The switch uses features like DDMI to monitor values such as temperature, voltage, TX bias, TX power, and RX power, protecting fiber transmission.Resistance to extreme environments: Built with industrial-grade components, tested in-house, and certified by international market safety agencies such as CE, FCC, and ROHS for reliable operation under harsh conditions. Strong resistance to extreme temperatures (-40ºC to 75ºC) and interference ensures flawless performance in diverse mechanical environments.SpecificationsStandards:IEEE 802.3 (10BASE-T)IEEE 802.3u (100BASE-TX, 100BASE-FX)IEEE 802.3ab (1000BASE-T)IEEE 802.3z (1000BASE-SX/LX)IEEE 802.3 (Nway Auto-negotiation)IEEE 802.3x (Flow Control)IEEE 802.1ad (Link Aggregation, QinQ)IEEE 802.3af (Power over Ethernet)IEEE 802.3at (Power over Ethernet Plus)IEEE 802.3az (Energy Efficient Ethernet)IEEE 802.1D (STP)IEEE 802.1w (RSTP)IEEE 802.1p (Class of Service)IEEE 802.1Q (VLAN Tagging)IEEE 802.1X (Port Authentication)IEEE 802.1AB (LLDP)Interface:24 x 10/100/1000BASE-T (PoE RJ45)2 x FX/GbE SFP1 x RJ45 Console PortPower:Input Voltage:9005-24GP2GS-A-C/9005-24GP2GS-A-H: 100~240VAC, 50/60Hz9005-24GP2GS-D-I: 48~57VDCPower Consumption: 20W (System Only)PoE Power Budget:9005-24GP2GS-A-C version: 220~240V AC 330W @ 50ºC (122ºF), derating to 280W @ 60ºC (140ºF)9005-24GP2GS-A-H version: 100~127V AC 260W @ 50ºC (122ºF), derating to 240W @ 60ºC (140ºF)9005-24GP2GS-D-I version: 48~57V DC 685W @ 70ºC (158ºF)Mechanical and Environment:Rack Space: 19"Form Factor: RackmountFan: FanlessAltitude: 2,000m (6,561.68ft)Operating Temperature:9005-24GP2GS-A-C: 0ºC to 50ºC (32ºF~122ºF)9005-24GP2GS-A-H: -10ºC to 60ºC (14ºF~140ºF)9005-24GP2GS-D-I: -40ºC to 70ºC (-40ºF~158ºF)Storage Temperature: -40ºC~85ºC (-40°F~185°F)Operating Humidity: 5% to 95% (non-condensing)Storage Humidity: 5% to 95% (non-condensing)Weight: 4,000g (8.8lb)Dimension (WxHxD): 440 x 44 x 284mm (17.3 x 1.73 x 11.2in)Order InformationModelDescription9005-24GP2GS-A-CManaged 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Internal AC power supply, 50°C (122°F)9005-24GP2GS-A-HManaged 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Industrial Switch, Internal AC power supply, 60°C (140°F)9005-24GP2GS-D-IManaged 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Industrial Switch, DC power input, 70°C (158°F)Specifications are subject to change without notice.Technical Specifications / Features24 x 10/100/1000BASE-T PoE+ ports2 x FX/GbE SFP uplink portsFanless, rackmount designFlexible AC/DC power inputOperating temperature: up to -40ºC to 70ºC depending on modelIndustrial-grade, IP30 enclosureCompliant with IEEE 802.3af/at standardsAdvanced security and management features (TACACS+, RMON, VLAN, etc.)Smart topology mapping and hardware monitoringCE, FCC, ROHS certified
