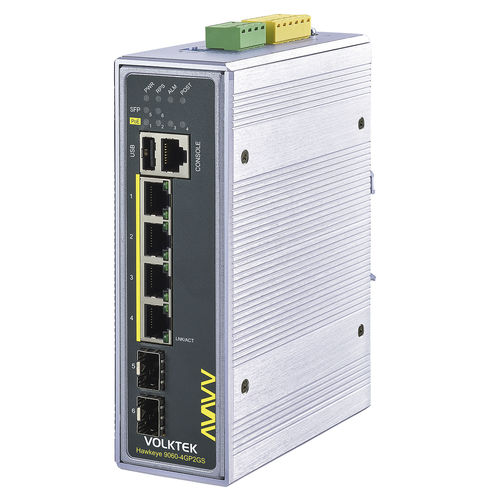

管理型イーサネットスイッチ 9060-4GP2GS series

スマート6 ポートDINレール

Product FeaturesFour 10/100/1000 PoE++ (802.3 bt) ports (up to 60W/90W per port, ideal for indoor/outdoor security and smart lighting systems)Two GbE SFP uplink ports (for long-distance connections and cascading)Equipped with one console port for command line interface and one USB port, supporting firmware upgrades, secure configuration, and log file downloadsTerminal block with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housing* Maximum operating temperature range by UL: -40˚C~60˚C (-40°F~140°F)Product OverviewThe 9060-4GP2GS is a high-performance managed 4-port 10/100/1000 GbE PoE++ (IEEE 802.3 bt) downlink, 2-port GbE SFP uplink, and two digital inputs for sensors, mainly designed for high-energy-demand IP surveillance and monitoring applications in modern smart systems. It supplies 60/90 watts and provides uninterrupted power even during system reboots. Real-time environmental data is collected via digital inputs. The RJ45 console port allows troubleshooting in case of network issues. The USB port is used for saving configuration files, system log files, and firmware upgrades, reducing network downtime and operational costs. The SFP port provides long-distance, noise-free fiber transmission. All ports support auto-negotiation, and Modbus TCP enables easy device aggregation in industrial Ethernet applications.To protect against multiple threats from system intrusions and extensive public connections, this device complies with cybersecurity standards to protect vulnerable networks. The wide operating temperature range of -40°C to 75°C (-40°F to 167°F) is suitable for most indoor and outdoor smart city and building applications. Grounding limits the effects of noise from electromagnetic interference (EMI), and the reset button restores the device to factory settings if problems occur after configuration.FunctionsData Collection for Smart Interactive Systems: The digital input of this device is used to collect data from the environment and control smart application systems that alert citizens. Data collected from sensors drives applications such as city pollution management, pandemic management systems like thermal monitoring, and smart lighting posts connecting cities.High Power Demand Applications and Smart Building Systems: Compliant with Type 3 and Type 4 PoE (IEEE 802.3 bt), this switch provides a total power budget of 360W, supporting 240W for high-power applications in the current version. PoE++ 60W is designed for 270° dome surveillance cameras for outdoor security and traffic monitoring, while PoE++ 90W is for home lighting, broadband, and security applications. The switch enables simple "plug and play" for immediate device interaction when PD is connected.Uninterrupted Power Supply to Powered Devices: High-power smart applications require uninterrupted power to avoid affecting PD performance. For example, outdoor cameras with integrated heating systems operate continuously in cold regions to prevent freezing, and lighting must remain on to maintain productivity. Perpetual PoE and Fast PoE features ensure uninterrupted power supply, even if the switch needs to be rebooted.Remote PD Management: The switch management interface allows central control of remote devices using PD control functions (PD alive check, PoE scheduling, etc.).PD Alive Check - Confirms the live active status of devices and restarts them if necessary, reducing costly trips to remote locations and saving valuable time.PD Scheduling - The Ethernet switch can schedule the time to supply power to PDs, reducing power consumption and saving operational costs by allocating sufficient power to critical applications.Protection from Cyber Attacks: The switch is protected by a login password, allowing only authorized users to access and configure the device. Security is enhanced by using security protocols such as TACACS+, RADIUS, and RMON, complying with cybersecurity standards to protect against network intrusions and data leaks.Loop-Free and Fast Recovery: Factory processes are time-sensitive and must avoid sudden interruptions caused by loops. This device features ring protocols such as RSTP, ERPS, and Xpress Ring, ensuring loop-free transmission and providing automatic backup paths for rapid recovery in less than a millisecond if the active link fails.Comprehensive Network Overview with Smart Topology Map: To facilitate problem detection and troubleshooting, a bird's-eye view of the network provides OT and IT users with a comprehensive understanding. This Ethernet switch uses smart technology to discover third-party devices, their interfaces, and link path statuses with tricolor codes (green, amber, red). Users can also set up maps with customized icons and background images.Protective Hardware Monitoring Functions: Fiber transmission in industrial environments may face conditions that adversely affect device performance. To protect interfaces, the switch uses features such as DDMI to monitor values like temperature, voltage, TX bias, TX power, and RX power, safeguarding fiber transmission.Resistance to Extreme Environments: Built with industrial-grade components, this device is tested in-house and certified by international market safety agencies such as CE, FCC, and ROHS for reliable operation under harsh environmental conditions. Its strong resistance to extreme temperatures (-40°C to 75°C) and interference ensures reliability in demanding industrial environments around various machinery.SpecificationsStandards: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-FX, IEEE 802.3ab, 1000BASE-T, IEEE 802.3z, 1000BASE-SX/LX, IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x Flow Control, IEEE 802.1ad Link Aggregation, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3bt 4 pairs PoE type 3/type 4, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.1AB LLDP, IEEE 802.1ad QinQ, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1p Class of service, priority protocols, IEEE 802.1Q VLAN tagging, IEEE 802.1X Port Authentication, IEEE 1588v2 PTPInterface: 4 x 10/100/1000BASE-T (PoE RJ45), 2 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port, 2 x Dry contacts of Digital Input, DIP Switch (Power voltage drop alarm setting), LED Panel (PWR, RPS, ALM, POST, SFP, PoE, 1000, LNK/ACT), Alarm Relay (One relay output, 1A @ 24V DC)Power: Primary inputs: 48~57V DC, Redundant inputs: 48~57V DC, Terminal Block connection, System power consumption: 20W, PoE Power Budget: 9060-4GP2GS-240W-I: 240 Watt, 9060-4GP2GS-360W-I: 360 WattMechanical and Environment: Aluminum housing (IP30 Protection), DIN-Rail mounting, Operating Temperature: -40°C~75°C (-40°F~167°F), Storage Temperature: -40°C~85°C (-40°F~185°F), Operating Humidity: 5 to 95% RH (non-condensing), Weight: 970 g (2.14 lb), Dimensions: 50 x 161.5 x 119.9 mm (1.97 x 6.35 x 4.72 in)Order InformationModelDescription9060-4GP2GS-240W-IL2+ Managed 4 x 10/100/1000 PoE++ & 2 x GbE SFP Switch, 240Watt PoE budget9060-4GP2GS-360W-IL2+ Managed 4 x 10/100/1000 PoE++ & 2 x GbE SFP Switch, 360Watt PoE budget*Specifications are subject to change without notice.Key Features / Technical Specifications4 x 10/100/1000 PoE++ (802.3 bt) ports (up to 60W/90W per port)2 x GbE SFP uplink ports1 x RJ45 console port1 x USB port2 x digital input portsRedundant power and alarm relayOperating temperature: -40°C~75°CIP30 aluminum housingDIN-Rail mountingWeight: 970 gDimensions: 50 x 161.5 x 119.9 mm
