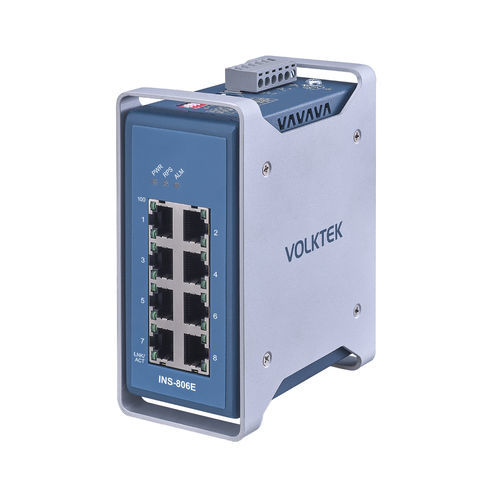

非管理型イーサネットスイッチ INS-806E

8 ポートProfiNetEtherNet/IP

Product FeaturesIndustrial unmanaged switch with premium features and 8 10/100 RJ45 ports (for high-speed Ethernet application devices)Auto-negotiation ports allow system operation without additional device installationUtilizes flow control and storm control to ensure network stability and prevent data overflowVLAN pass-through (transfers VLAN packets without dropping or modifying them, preventing packet loss)Supports QoS function via 802.1p tag, allowing prioritization of network traffic for critical control data in industrial applications such as EIP (EtherNet/IP), PROFINET, and GOOSE, minimizing latencyOperating temperature range: -40°C~75°C (-40°F~167°F), IP40 aluminum housingOverviewThe INS-806E is an unmanaged 8-port 10/100 RJ45 downlink industrial switch with premium features. It provides auto-negotiation on all ports, enabling easy integration of devices in industrial Ethernet applications. The switch is equipped with traffic optimization features for stable performance and prevents packet loss by transporting VLAN packets without modification. It also prioritizes data for industrial QoS on Ethernet/IP, PROFINET, and GOOSE packets.This switch is built with industrial-grade components and enclosed in an IP40 aluminum case, protecting the device from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperatures from -40°C to 75°C (-40°F to 167°F), making it suitable for extreme industrial environments.FunctionsProtection from unpredictable and harsh environments: Designed to withstand electrostatic discharge, power surges, overvoltage, overcurrent, high vibration, and reverse connection.Easy installation and compact size: All ports feature auto MDI/MDI-X, allowing easy connection to other switches or hubs.Broadcast storm: Monitors the traffic storm level of received broadcast packet rates and limits them within a certain time to prevent unnecessary traffic and protect performance.SpecificationsStandards: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE802.1p (Class of Service)Interface: 8 x 10/100BASE-TX (RJ45) ports, DIP Switch (PWR, RPS, P1 ~ P8), LED Indicator (PWR, RPS, ALM, 100, LNK/ACT)Power: Input Voltage: Primary input 12~48VDC, Redundant input 12~48VDC; Connector: Terminal Block; Max Power Consumption: 3W; Alarm Relay: One relay output, 1A @ 24V DC; Reverse Polarity Protection: Present; Over Load Protection: PresentMechanical and Environment: Housing: Aluminum (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 480 g (1.0 lb); Dimension (WxHxD): 57.3 x 131.2 x 100.9 mm (2.26 x 5.17 x 3.97 in)Order InformationModelDescriptionINS-806EPremium Unmanaged 8 x 10/100 RJ45 Industrial SwitchSpecifications are subject to change without notice.Key Features / Technical Specifications8 x 10/100BASE-TX (RJ45) portsAuto-negotiation and auto MDI/MDI-XVLAN pass-throughQoS via 802.1pOperating temperature: -40°C~75°CIP40 aluminum housingDIN-Rail mountingRedundant power input 12~48VDCMax power consumption: 3WAlarm relay outputReverse polarity and overload protectionDimensions: 57.3 x 131.2 x 100.9 mmWeight: 480 g
