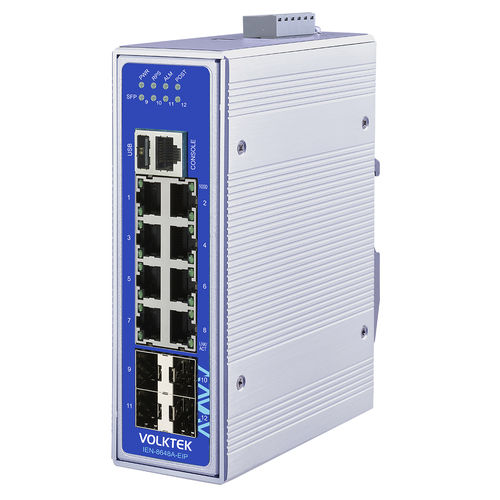

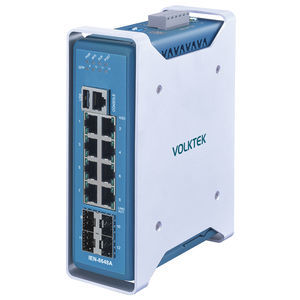

管理型イーサネットスイッチ IEN-8648A-EIP

12 ポートレベル 2ギガビットイーサネット

Product Features8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports (supporting long-distance and daisy-chain connections)Optimizes network performance and ensures sufficient bandwidth by utilizing flow control and QoSDIP control allows users to easily configure important port settings with simple switch operationsCompliant with Ethernet/IP, supporting communication standards for industrial applicationsOperating temperature range: -40°C to 75°C (-40°F to 167°F), IP30 aluminum housingProduct OverviewThe IEN-8648A-EIP is a high-performance managed industrial switch with 8-port 10/100/1000 RJ45 downlinks and 4-port GbE SFP uplinks, designed for communication between controllers and devices in automation environments using the Ethernet/IP protocol. The SFP ports provide long-distance, noise-free fiber transmission at Fast and Gigabit Ethernet speeds, suitable for use with industrial devices such as PLCs, HMIs, and legacy devices.This switch offers various built-in traffic optimization and network performance features to prioritize critical data packets, prevent data loss during communication, and stabilize transmission. It is compatible with third-party devices and can be easily identified using topology maps. The device complies with cybersecurity standards, protecting the network from vulnerabilities and safeguarding assets.Constructed with industrial-grade components and housed in a high thermal conductivity IP30 aluminum case, it protects the device from tools and hazards. The device uses Ethernet/IP packets for communication with other devices, meeting industrial requirements. It is designed to withstand vibration, shock, drop, interference, and temperature ranges from -40°C to 75°C (-40°F to 167°F), making it suitable for harsh industrial applications. To ensure reliability, redundant power and alarm relay contacts on the terminal block guarantee continuous operation and issue alerts even if the power supply is interrupted.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Port-based and IEEE 802.1Q VLAN: Uses GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) to segment large networks into smaller parts, creating separate broadcast domains.Automatic firmware backup: Automatically backs up firmware to secondary memory in case the primary memory is lost, and activates from there.Redundant power system: Supports simultaneous power supply from two different sources, such as SDR-480P-48 power supply or IRA-120/IRA-160 DIN-rail AC-DC power adapters, with power failure alarms.Efficient traffic prioritization: Effective QoS features for sending dedicated traffic to specific applications and allocating appropriate bandwidth for mission-critical communications.Redundant ring for rapid recovery: Uses Xpress Ring for millisecond-level rapid detection and recovery from link failures, as well as ERPS (Ethernet Ring Protection Switching), dual homing, LACP (Link Aggregation Control Protocol), and RSTP (Rapid Spanning Tree Protocol) for continuous and consistent operation.SpecificationsStandards:IEEE 802.3 (10BASE-T)IEEE 802.3u (100BASE-TX)IEEE 802.3ab (1000BASE-T)IEEE 802.3z (1000BASE-SX/LX)IEEE 802.3 (Nway Auto-negotiation)IEEE 802.3x (Flow Control)IEEE 802.3ad (Link Aggregation)IEEE 802.1AB (LLDP)IEEE 802.1ad (QinQ)IEEE 802.1D (STP)IEEE 802.1w (RSTP)IEEE 802.1s (MSTP)IEEE 802.1p (Class of Service)IEEE 802.1Q (VLAN Tagging)IEEE 802.1X (Port Authentication)IEEE 1588v2 (PTP)Interface:Ports: 8 x 10/100/1000BASE-T (RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB PortDIP Switch: Primary/Redundant Power Voltage Drop Alarm settingLED Panel: PWR, RPS, ALM, POST, SFP, 1000, LNK/ACTPower:Input Voltage: Primary inputs: 12~60VDC, Redundant inputs: 12~60VDCConnection: Terminal BlockPower Consumption: System: 18WAlarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment:Housing: Aluminum (IP30 Protection)Mounting: DIN-RailOperating Temperature: -40°C~75°C (-40°F~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5 to 95% RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)Weight: 955 g (2.1 lb)Dimension (WxHxD): 50 x 165 x 122.2 mm (1.97 x 6.50 x 4.81 in)Model: IEN-8648A-EIPDescription: Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Switch, EtherNet/IP Approval, -40°C~75°C (-40°F~167°F)Key Features / Technical Specifications:8 x 10/100/1000 RJ45 ports4 x GbE SFP uplink portsDIN-rail mountingIP30 aluminum housingOperating temperature: -40°C to 75°CRedundant power input: 12~60VDCPower consumption: 18WWeight: 955gDimensions: 50 x 165 x 122.2 mmCompliant with Ethernet/IPAdvanced QoS, VLAN, redundancy, and security features
