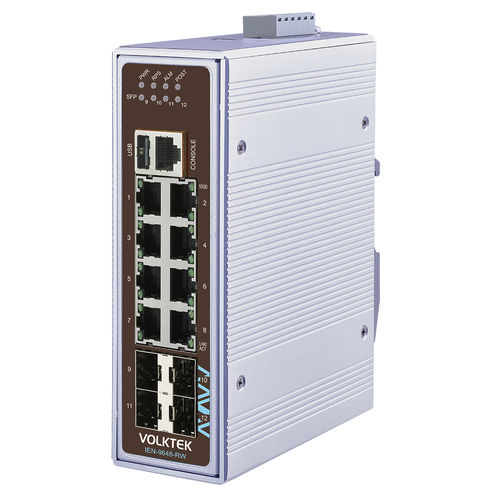

管理型イーサネットスイッチ IEN-9648-RW

12 ポートギガビットイーサネットProfiNet

Product Features8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports (supporting long-distance and daisy-chain connections)1 x console port for command line interface, USB port supports firmware upgrades, secure configuration storage, and log file downloadsSupports QoS function via 802.1p tag, allowing prioritization of critical control data such as EIP (EtherNet/IP), PROFINET, and GOOSE in industrial applications, minimizing latencyWide input voltage range (24V–57V) for diverse environmentsCompliant with EN 50155, EN 50121-4, and EN 61373 standards, making it ideal for safe and reliable railway applicationsOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housingProduct OverviewThe IEN-9648-RW is a managed industrial switch equipped with high-performance 8-port 10/100/1000 RJ45 downlinks and 4-port GbE SFP uplinks, designed to meet the thermal and environmental requirements of railway applications. Downlink ports connect to industrial equipment and controllers, while fiber ports provide noise-free gigabit Ethernet transmission, enabling fast and reliable long-distance connections to other switches or control centers.The RJ45 console port allows outbound network connections for troubleshooting. The USB port enables configuration file storage, system log file storage, and firmware upgrades, reducing network downtime and operational costs. The switch offers various built-in traffic optimization and network performance features to prioritize industrial applications, prevent data loss during communication, and ensure stable transmission. It also includes a topology map compatible with third-party devices for network monitoring. The device complies with cybersecurity standards, protecting the network from vulnerabilities and safeguarding assets.Constructed with industrial-grade components, the switch is enclosed in a high thermal conductivity IP30 aluminum case, protecting the device from tools and hazards. To ensure reliability, redundant power and alarm relay contacts on the terminal block guarantee uninterrupted operation and issue warnings in case of power loss. Designed to withstand vibration, shock, free fall, and temperatures from -40°C to 75°C (-40°F to 167°F), it is suitable for locations such as tunnels.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Port-based and IEEE 802.1Q VLAN: GARP and GVRP protocols allow large networks to be divided into smaller segments, isolating broadcast domains.Automatic firmware backup: Automatically backs up firmware to secondary storage in case the primary storage is lost, and activates from there.Redundant power system: Designed to connect to two power supplies simultaneously via standard industrial terminal block. If one power supply fails, the switch draws power from the other and triggers an alarm to notify technicians.Efficient network monitoring and management: Uses SNMP and RMON protocols for efficient traffic management and monitoring.Efficient traffic prioritization: Provides effective QoS mechanisms for dedicated traffic transmission and appropriate bandwidth allocation for critical communications.Redundant ring for rapid network recovery: Xpress Ring detects and recovers from link failures within milliseconds.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, POST, 1000, LNK/ACT)Power: Input Voltage: Primary inputs: 12V~48VDC, Redundant inputs: 12V~48VDC; Connection: Terminal Block; Power Consumption: System: 18W; Alarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 955 g (2.1 lb); Dimension (WxHxD): 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)Ordering InformationModelDescriptionIEN-9648-RWManaged 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch, Railway ApprovalKey Features / Technical Specifications8 x 10/100/1000 RJ45 ports4 x GbE SFP uplink ports1 x RJ45 console port1 x USB portWide input voltage: 12V~48VDCRedundant power supportDIN-Rail mountingIP30 aluminum housingOperating temperature: -40°C~75°CWeight: 955 gDimensions: 50 x 164.9 x 122.2 mmCompliant with EN 50155, EN 50121-4, EN 61373
