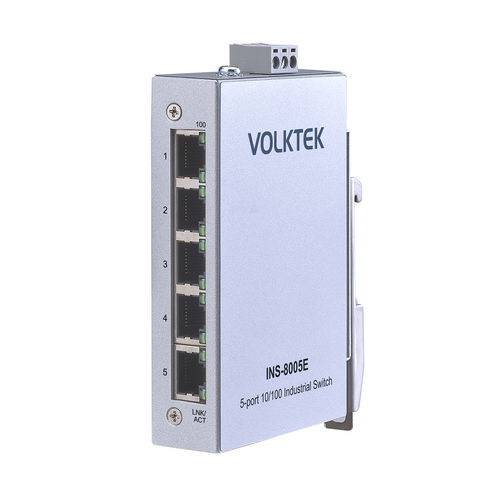

非管理型イーサネットスイッチ INS-8005E

5 ポートProfiNetEtherNet/IP

Product Features5 x 10/100 RJ45 ports (high-speed Ethernet application system with premium features)Auto-negotiation ports enable system operation without additional device installationUtilizes flow control and storm control to ensure network stability and prevent data overflowVLAN pass-through (forwards VLAN packets without dropping or modifying them, preventing packet loss)Supports QoS function via 802.1p tag, allowing prioritization of network traffic for critical control data in industrial applications such as EIP (EtherNet/IP), PROFINET, and GOOSE, minimizing latencyOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 metal housing* Maximum operating temperature range by UL: -40°C~70°C (-40°F~158°F)Product OverviewThe INS-8005E is an unmanaged 5-port 10/100 RJ45 downlink industrial switch with premium features, providing very basic interconnection between devices with high traffic demands. All ports feature auto-negotiation, making it easy to aggregate devices in industrial Ethernet applications. This device can be used with peripherals such as multi-axis robots, PLCs, HMIs, and legacy devices. Auto-negotiation facilitates device aggregation in industrial Ethernet applications. Data is prioritized with industrial QoS for EtherNet/IP, PROFINET, and GOOSE packets.The switch offers various built-in traffic optimization and network performance features to prevent data loss during communication and ensure stable transmission. Utilizing flow control and VLAN pass-through, it prioritizes critical industrial data packets such as EtherNet/IP, PROFINET, and GOOSE for industrial applications. Per-port 802.1p tag QoS ensures delivery of high-priority data.This switch is constructed with industrial-grade components and housed in an IP30 metal case, protecting the device from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperatures from -40°C to 75°C (-40°F to 167°F), making it suitable for extreme industrial environments.FunctionsRobust design: Designed to withstand electromagnetic interference, electrostatic discharge, power surges, overvoltage, and overcurrent.Redundant power system: The switch can connect to two power supplies and alarms simultaneously via a standard industrial terminal block to ensure continuous power. If one power supply fails, the switch draws from the alternative, and the alarm notifies technicians.Easy installation and compact size: All ports support Auto MDI/MDI-X for easy connection to other switches or hubs.Comprehensive QoS: Supports IEEE 802.1p Quality of Service (QoS) to improve bandwidth utilization and ensure time-sensitive data is delivered efficiently and without delay to mission-critical applications.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3 (Nway Auto-Negotiation), IEEE 802.3x (Flow Control), IEEE 802.1p (Class of Service)Interface: 5 x 10/100Base-TX (RJ45), LED Panel: PWR, 100, LNK/ACTPower: Input Voltage: 12~48VDC, Connection: Terminal Block, Power Input Polarity Protection: Present, Current Overload Protection: Present, Power Consumption: 3WMechanical and Environment: Housing: Aluminum (IP30 Protection), Mounting: DIN-Rail, Wall Mount, Operating Temperature: -40°C~75°C (-40°F~167°F), Storage Temperature: -40°C~85°C (-40°F~185°F), Operating Humidity: 5 to 95% RH (non-condensing), Storage Humidity: 5 to 95% RH (non-condensing), Weight: 160 g (0.3 lb), Dimension (WxHxD): 23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)ModelDescriptionINS-8005EPremium Unmanaged 5 x 10/100 RJ45 Industrial Switch*Specifications subject to change without prior notice.Technical Specifications / Features:5 x 10/100 RJ45 portsAuto-negotiation on all portsFlow control and storm controlVLAN pass-through802.1p QoS supportOperating temperature: -40°C~75°CIP30 metal housingRedundant power input (12~48VDC)DIN-Rail and wall mountablePower consumption: 3WDimensions: 23.6 x 111.5 x 73.8 mmWeight: 160 g
