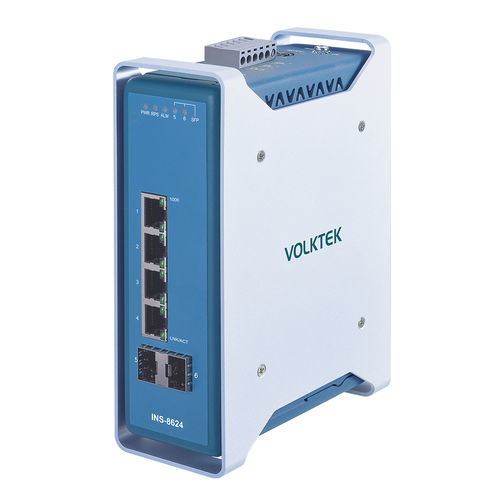

管理型イーサネットスイッチ INS-8624

6 ポートギガビットイーサネットDINレール

Product Features4 x 10/100/1000 RJ45 ports and 2 x FX/GbE SFP uplink ports (for long-distance connections)Topology map for network monitoringStorm control, flow control, and QoS to optimize network performanceOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housingProduct OverviewThe INS-8624 is a high-performance managed industrial switch equipped with four 10/100/1000 RJ45 downlink ports and two multi-rate FX/GbE SFP uplink ports, designed for communication between controllers and devices in automation environments. The SFP ports provide long-distance, noise-free fiber transmission adaptable to both Fast and Gigabit Ethernet speeds. It is used alongside peripheral devices such as multi-axis robots, PLCs, HMIs, and legacy devices. All ports support auto-negotiation, and with Modbus TCP, devices can be easily aggregated in industrial Ethernet applications.This switch uses storm control, flow control, and QoS to optimize traffic, prioritize industrial data packets, prevent data loss during communication, and provide stable transmission. It features a topology map for network visualization and complies with cybersecurity standards to protect the network from vulnerabilities.Constructed with industrial-grade components and enclosed in a high thermal conductivity IP30 aluminum case, the device is protected from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperatures from -40°C to 75°C (-40°F to 167°F), making it suitable for harsh industrial applications. For reliability, redundant power supply and alarm relay contacts on the terminal block ensure non-stop operation and provide warnings in case of power failure.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Redundant power system: Simultaneous supply from two different power sources, such as SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC-to-DC adapters, with power failure alarms.Dual SFP ports for fiber connectivity: Dual Gigabit SFP slots for future expansion of fiber-based daisy chain topology.Port-based and IEEE 802.1Q VLAN: GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for dividing large networks into smaller segments and creating separate broadcast domains.Efficient traffic prioritization: Effective QoS mechanisms for dedicated traffic transmission to specific applications and appropriate bandwidth allocation for critical communications.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication)Interface: 4 x 10/100/1000BASE-T (RJ45), 2 x GbE SFP slots; DIP Switch for primary/redundant power voltage drop alarm setting; LED Panel: PWR, RPS, ALM, SFP, 1000, LNK/ACTPower: Input Voltage: Primary/Redundant inputs: 20~57VDC; Connection: Terminal Block; Power Consumption: System: 10W; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 725 g (1.6 lb); Dimensions (WxHxD): 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)Ordering InformationModelDescriptionINS-8624Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP SwitchKey Features / Technical Specifications4 x 10/100/1000 RJ45 ports2 x FX/GbE SFP uplink portsTopology map for network monitoringStorm control, flow control, QoSOperating temperature: -40°C~75°CIP30 aluminum housingRedundant power supplyDIN-rail mountingWeight: 725 gDimensions: 50 x 164.9 x 122.2 mm
