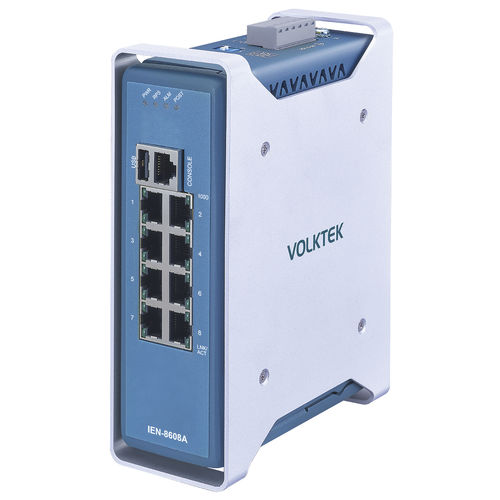

管理型イーサネットスイッチ IEN-8608A

8 ポートDINレールDIP

Product Features8 x 10/100/1000 RJ45 ports (supports industrial devices such as PLC, HMI, printers for automation systems)Equipped with 1 console port for command line interface and 1 USB port, supporting firmware upgrades. Also features secure configuration storage and log file download capabilities.Topology map for network monitoringSupports Modbus TCP communication for integration with both legacy and advanced industrial devicesStorm control, flow control, and QoS optimize network performanceOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housingProduct OverviewThe IEN-8608A is a high-performance 8-port 10/100/1000 RJ45 managed industrial switch designed for communication between controllers and devices in automation environments. It is used with peripherals such as multi-axis robots, PLCs, HMIs, and legacy devices. All ports offer auto-negotiation and Modbus TCP, facilitating device integration in industrial Ethernet applications.The RJ45 console port provides outbound connections for network troubleshooting. The USB port supports firmware upgrades, secure configuration storage, and log file downloads for offline network management. The switch optimizes traffic using storm control, flow control, and QoS, prioritizing industrial data packets and preventing data loss during communication for stable transmission. It features a topology map for network visualization and complies with cybersecurity standards to protect the network from vulnerabilities.Constructed with industrial-grade components and enclosed in a high thermal conductivity IP30 aluminum case, the device is protected from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperature ranges from -40°C to 75°C (-40°F to 167°F), making it suitable for extreme industrial applications. For reliability, redundant power and alarm relay contacts on the terminal block ensure non-stop operation and alert in case of power failure.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Port-based and IEEE 802.1Q VLAN: Supports GARP and GVRP for dividing large networks into smaller segments and creating separate broadcast domains.Automatic firmware backup: Automatically backs up firmware to secondary memory and boots from it if primary memory is lost.Redundant power system: Simultaneous power supply from two different sources (e.g., SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail AC-to-DC adapters) with power failure alarm.Efficient network monitoring and management: Supports SNMP and RMON protocols for efficient traffic management and monitoring.Efficient traffic prioritization: Provides effective QoS mechanisms for priority assignment, dedicated traffic for specific applications, and appropriate bandwidth allocation for mission-critical communications.Redundant ring for fast recovery: Offers continuous and consistent operation with Xpress Ring, ERPS, dual homing, LACP, and RSTP for rapid detection and recovery from link failures in milliseconds.SpecificationsModelDescriptionIEN-8608AManaged 8 x 10/100/1000 RJ45 SwitchTechnical SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (RJ45), 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, POST, 1000, LNK/ACT)Power: Input Voltage: Primary/Redundant inputs: 12~60VDC; Connection: Terminal Block; Power Consumption: System: 15W; Alarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 935 g (2.0 lb); Dimensions (WxHxD): 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)
