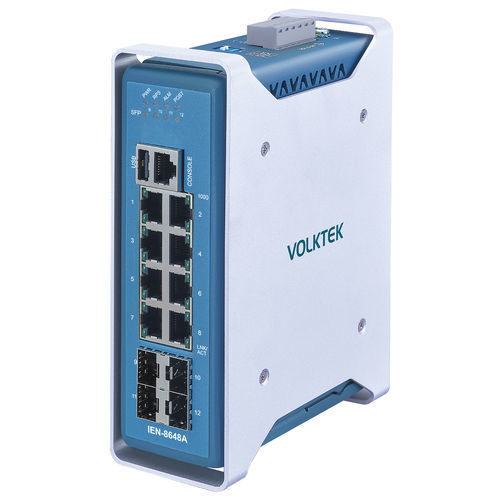

管理型イーサネットスイッチ IEN-8648A

12 ポートDINレールDIP

Product Features8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports (supporting long-distance and daisy-chain connections)1 x console port for command line interface, USB port supports firmware upgrade, secure configuration storage, and log file downloadTopology map for network monitoringStorm control, flow control, and QoS optimize network performanceOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housingProduct OverviewThe IEN-8648A is a high-performance managed industrial switch with 8-port 10/100/1000 RJ45 downlinks and 4-port GbE SFP uplinks, designed for communication between controllers and devices in automation environments. It is used with peripheral devices such as multi-axis robots, PLCs, HMIs, and legacy devices, providing auto-negotiation and Modbus TCP on all ports to facilitate device integration in industrial Ethernet applications. The switch features various traffic optimization and network performance functions to prioritize critical data packets, prevent data loss during communication, and ensure stable transmission. It also includes a topology map for network visualization and complies with cybersecurity standards to protect against network vulnerabilities.The RJ45 console port enables troubleshooting when network issues occur. The USB port supports firmware upgrades, secure configuration storage, and log file downloads for offline network status management. The switch uses storm, flow control, and QoS to optimize traffic, prioritize industrial data packets, prevent data loss during communication, and provide stable transmission. It also includes a topology map for network visualization and complies with cybersecurity standards to protect against network vulnerabilities.This switch is built with industrial-grade components and enclosed in a high thermal conductivity IP30 aluminum case to protect the device from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and a temperature range of -40°C to 75°C (-40°F to 167°F), making it suitable for harsh industrial applications. To ensure reliability, redundant power and terminal block alarm relay contacts guarantee continuous operation and issue alerts when power is lost.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Port-based and IEEE 802.1Q VLAN: GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmenting large networks into smaller parts and creating separate broadcast domains.Automatic firmware backup: Automatically backs up firmware to secondary memory and activates from there if primary memory is lost.Redundant power system: Simultaneous power supply from two different sources, such as SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC adapters, with power failure alarms.Efficient network monitoring and management: Efficient traffic management and monitoring using SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols.Efficient traffic prioritization: Effective QoS mechanisms for sending dedicated traffic to specific applications and allocating appropriate bandwidth for critical communications.Redundant ring for fast recovery: Xpress Ring for rapid detection and recovery from link failures in milliseconds, and continuous, consistent operation with ERPS (Ethernet Ring Protection Switching), dual homing, LACP (Link Aggregation Control Protocol), and RSTP (Rapid Spanning Tree Protocol).SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, POST, SFP, 1000, LNK/ACT)Power: Input Voltage: Primary/Redundant inputs: 12~60VDC; Connection: Terminal Block; Power Consumption: System: 18W; Alarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 955 g (2.1 lb); Dimension (WxHxD): 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)Ordering InformationModelDescriptionIEN-8648AManaged 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial SwitchKey Features / Technical Specifications8 x 10/100/1000 RJ45 ports4 x GbE SFP uplink ports1 x RJ45 console port1 x USB portRedundant power input: 12~60VDCOperating temperature: -40°C~75°CIP30 aluminum housingDIN-rail mountingDimensions: 50 x 164.9 x 122.2 mmWeight: 955 g
