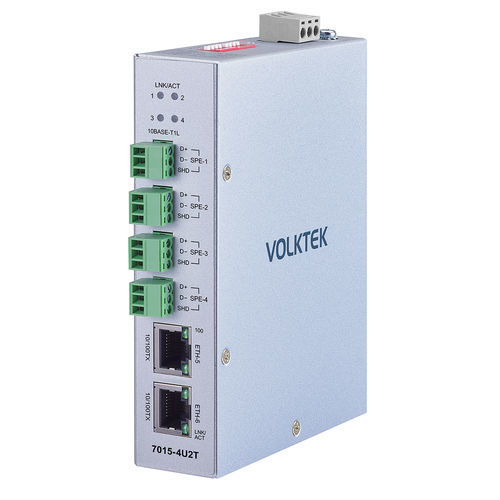

非管理型イーサネットスイッチ 7015-4U2T-T1L

6 ポート壁掛けDIP

Product Features: 4 x 10BASE-T1L SPE ports and 2 x 10BASE-T RJ45 ports Conversion supporting various connection requirements, including auto and master/slave mode via DIP switch Compact size with IP40 metal housing and high thermal conductivity Clear device status indication: 3-pin terminal block and LED indicator for 10BASE-T1L Multiple mounting options: DIN rail and wall mount supported Compliant with IEEE 802.3cg Single Pair Ethernet (SPE) standard, enabling 10 Mbps Ethernet communication up to 1000m Utilizes existing fieldbus wiring, simplifying cabling, reducing costs, and promoting industrial Ethernet expansion Seamless interoperability with existing networks using standard CAT5/6 cables Operating temperature range: -40°C ~ 75°C (-40°F ~ 167°F) * Maximum operating temperature range by UL: -40˚C to 75˚C (-40°F to 167°F) Product Overview: The 7015-4U2T-T1L unmanaged industrial Single Pair Ethernet (SPE) switch is a cutting-edge solution designed for robust industrial Ethernet connectivity. Equipped with four 10BASE-T1L SPE ports and two 10/100BASE-TX RJ45 ports, this switch offers unparalleled flexibility for industrial control networks. Its rugged metal case with grounding screw and IP40 protection ensures high reliability even in harsh environments, supporting a wide operating temperature range of -40°C to 75°C. This switch complies with the IEEE 802.3cg Single Pair Ethernet (SPE) standard, enabling high-speed 10 Mbps Ethernet communication over distances up to 1000m using existing fieldbus cables, outperforming standard 100BASE-TX. The 7015-4U2T-T1L not only simplifies wiring and reduces costs but also extends the application range of industrial Ethernet to new sensors, actuators, and automation scenarios. Seamless interoperability with existing Ethernet networks using standard CAT5/6 cables makes this switch a future-proof, efficient, and cost-effective industrial connectivity solution. Functions: Reduced wiring complexity: Uses only one pair of twisted copper wires, simplifying cable configuration and reducing installation complexity. Space-saving and lightweight: SPE cables are small and lightweight, ideal for applications where space and weight are critical, contributing to improved industrial IoT performance. Rugged components for harsh industrial environments: Built with industrial-grade components and housed in a metal IP40 enclosure with excellent thermal conductivity. Resistant to harsh environments, vibration, EMI, ESD, power surges, overvoltage, overcurrent, and reverse polarity. Operates in extreme temperatures (-40°C to 75°C), compliant with international safety standards such as CE, FCC, and ROHS. Quick and convenient installation with auto-negotiation: Plug-and-play operation. 10/100 Mbps ports support auto MDI/MDI-X connection and auto-negotiation, automatically connecting to other network devices at the required speed without additional software. Specifications: Standards: IEEE 802.3, 10BASE-T, 10BASE-T1L (Compliant), IEEE 802.3u, 100BASE-TX, IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x Flow Control Interface: 2 x 10/100 BASE-TX Port, 4 x 10BASE-T1L Port, DIP Switch (Auto/Manual, Master/Slave per SPE port), LED Panel (PWR, 10T1L 1~4: LNK/ACT (Green/Amber), 100TX: 100, LNK/ACT) Power: Input Voltage: 12~48VDC, Power Consumption: 4W Mechanical and Environment: Housing: Metal (IP40 Protection), Operating Temperature: -40°C~75°C (-40°F~167°F), Storage Temperature: -40°C~85°C (-40°F~185°F), Operating Humidity: 5~95% RH (non-condensing), Storage Humidity: 5~95% RH (non-condensing), Weight: 493 g (1.09 lb), Dimension (WxHxD): 31 x 136 x 105 mm (1.22 x 5.36 x 4.13 in) Ordering Information: ModelDescription7015-4U2T-T1LUnmanaged 4 x 10BASE-T1L SPE & 2 x 10/100 RJ45 Industrial SPE Switch *Specifications are subject to change without notice. Key Features / Technical Specifications: 4 x 10BASE-T1L SPE ports 2 x 10/100BASE-TX RJ45 ports Compliant with IEEE 802.3cg SPE standard Supports up to 1000m at 10 Mbps Operating temperature: -40°C to 75°C Metal housing with IP40 protection DIN rail and wall mount options Input voltage: 12~48VDC Power consumption: 4W Dimensions: 31 x 136 x 105 mm Weight: 493 g
