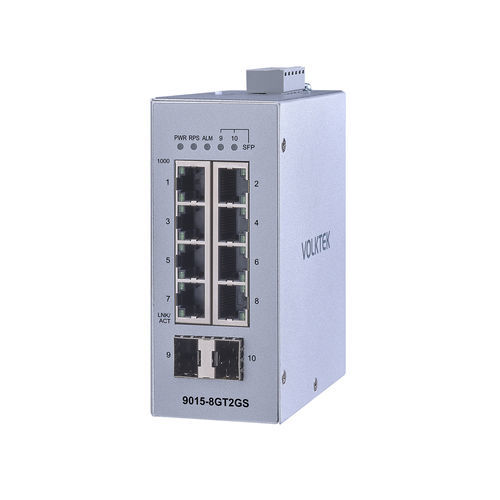

管理型イーサネットスイッチ 9015-8GT2GS-I

10 ポートギガビットDINレール

Product Features8 x 10/100/1000 RJ45 ports (supports industrial devices such as PLC, HMI, printers for automation systems)2 x FX/GbE SFP uplink ports (for long-distance connections)Topology map for network monitoringStorm control, flow control, and QoS to optimize network performanceOperating temperature range: -40°C to 75°C (-40°F to 167°F), IP30 metal housingProduct OverviewThe Woodpecker 9015-8GT2GS-I is a high-performance managed industrial switch with 8-port 10/100/1000 RJ45 downlinks and 2-port FX/GbE SFP uplinks, designed for communication between controllers and devices in automation environments. It is used with peripherals such as multi-axis robots, PLCs, HMIs, and legacy devices. All ports support auto-negotiation, and devices can be easily aggregated in industrial Ethernet applications using Modbus TCP. The switch optimizes traffic using storm, flow control, and QoS, prioritizes industrial data packets, prevents data loss during communication, and ensures stable transmission. It also features a topology map for network visualization and complies with cybersecurity standards to protect against network vulnerabilities.This switch is built with industrial-grade components and enclosed in a high thermal conductivity IP30 metal case, protecting the device from tools and hazardous materials. It is designed to withstand vibration, shock, free fall, interference, and a temperature range of -40°C to 75°C (-40°F to 167°F), making it suitable for extreme industrial applications. For reliability, redundant power supply and terminal block alarm relay contacts ensure non-stop operation and issue warnings in case of power failure.FunctionsIndustrial Environment Resistance: Tested and certified for safe use under harsh conditions, designed to withstand electromagnetic interference, electrostatic discharge, power surges, overvoltage, overcurrent, and reverse polarity during accidents. Operating temperature range: -40°C to 75°C.Secure Remote Management Control: Provides secure features such as SSH, HTTPs, SNMPv3, 802.1X, and TACACS+ to allow users to operate the switch in a protected state and defend the network against malicious attacks.Network Monitoring Tools: Tools such as cable test, multicast address, and MAC flapping are available to monitor the network and keep operations smooth, helping users identify issues that may affect industrial processes.Redundant Power Supply: Designed to connect to two power supplies simultaneously via a standard industrial terminal block. If one power supply fails, the switch draws power from the alternative supply and triggers an alarm to notify technicians.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication)Interface: 8 x 10/100/1000Base-T & 2 x 100FX/Gigabit SFP ports; DIP Switch for Primary/Redundant Power Voltage Drop Alarm setting; LED Panel: PWR, RPS, ALM, SFP, 1000, LNK/ACTPower: Input Voltage: Primary inputs: 24~48V DC, Redundant inputs: 24~48V DC; Connection: Terminal Block; Power Consumption: 9015-8GT-I: Max. 10W, 24V DC @ 0.35A; 9015-8GT2GS-I: Max. 11W, 24V DC @ 0.4A; Alarm Relay: One relay output with current carrying capacity of 1A @ 24V DCMechanical and Environment: Housing: Metal (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Dimension (WxHxD): 50 x 119.2 x 102 mm (1.97 x 4.69 x 4.02 in); Weight: 550 g (1.2 lb)Ordering InformationModelDescriptionWoodpecker 9015-8GT2GS-IManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP SwitchKey Features / Technical Specifications8 x 10/100/1000 RJ45 ports2 x FX/GbE SFP uplink portsTopology map for network monitoringStorm control, flow control, QoSOperating temperature: -40°C to 75°CIP30 metal housingRedundant power supplyDIN-Rail mountingModbus TCP supportSecure management: SSH, HTTPs, SNMPv3, 802.1X, TACACS+Alarm relay outputDimensions: 50 x 119.2 x 102 mmWeight: 550 g
