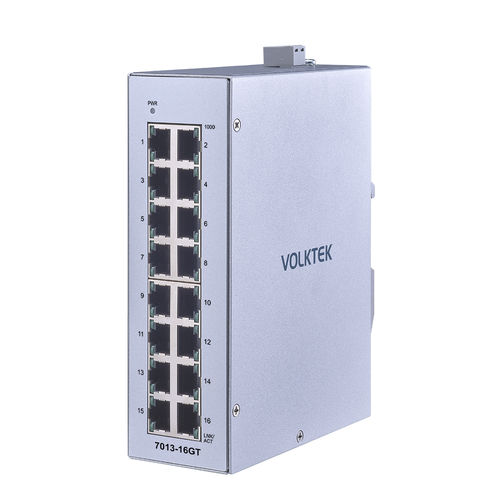

非管理型イーサネットスイッチ 7013-16GT-I

16 ポートProfiNetDINレール

Product FeaturesEquipped with 16 10/100/1000 RJ45 ports, supporting systems for multi-axis robots, PLCs, HMIs, printers, and other auxiliary devices in industrial automation.Compliant with IEEE 802.3az standard to reduce power consumption of network devices.Utilizes flow control to ensure network stability and prevent data overflow.Supports QoS function via 802.1p tag, prioritizing PROFINET control data in industrial applications.Operating temperature range: -40°C~75°C (-40°F~167°F), IP30 metal housing.* Maximum operating temperature range by UL: -40°C~70°C (-40°F~158°F)Product OverviewThe Woodpecker 7013-16GT-I is an unmanaged 16-port 10/100/1000 RJ45 downlink industrial switch used for communication between controllers and devices in automation settings. This high-density port switch is used for multi-axis robots and their peripherals (PLCs, HMIs, legacy devices, etc.). It provides auto-negotiation on all ports, making it easy to aggregate devices in industrial Ethernet applications.This switch offers various built-in traffic optimization and network performance features to prioritize critical industrial data packets, prevent data loss during communication, and ensure stable communication.Built with industrial-grade components enclosed in an IP30 metal case to protect devices from tools and other hazards. It is designed to withstand vibration, shock, and free fall, and to operate in a temperature range of -40°C to 75°C (-40°F to 167°F), making it suitable for extreme industrial applications.FeaturesRobust Performance and ProtectionThe Woodpecker 7013 series features industrial-grade components and an IP30 rugged housing that withstands harsh environments from -40°C to 75°C, providing reliable performance for mission-critical applications.Industrial-Grade EMC Protection DesignThe Woodpecker 7013 series is designed with high-efficiency EMC protection to safeguard devices from various electromagnetic disturbances, such as external lightning and static electricity transfer between devices with different potentials.Auto Link Speed NegotiationThe Woodpecker 7013 series provides auto-negotiation to enable smooth communication between devices with different link speeds, balancing data transmission rates between the switch and connected PLCs.High-Density Port DesignThe high-density port design of the Woodpecker 7013 series allows multiple devices to be connected to a single switch in applications with complex network structures.QoS FunctionTo ensure efficient network operation, the Woodpecker 7013 series supports QoS functions, ensuring priority applications and proper traffic flow even with limited network capacity.SpecificationsStandards:IEEE 802.3 (10BASE-T)IEEE 802.3u (100BASE-TX)IEEE 802.3ab (1000BASE-T)IEEE 802.3 (Nway Auto-negotiation)IEEE 802.3x (Flow Control)IEEE 802.1p (Class of Service)Interface:Ports: 16 x 10/100/1000BASE-T (RJ45)Connection: Terminal BlockLED Panel: PWRPower:Input Voltage: Primary inputs 12~48VDCConnection: Terminal BlockPower Consumption: 14WReverse Polarity: PresentMechanical and Environment:Housing: Metal (IP30 protection)Mounting: DIN-RailOperating Temperature: -40°C~75°C (-40°F~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5 to 95% RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)Weight: 880g (1.94 lb)Dimension (WxHxD): 50 x 163.4 x 120.0 mm (1.97 x 6.43 x 4.72 in)ModelDescriptionWoodpecker 7013-16GT-IUnmanaged 16 x 10/100/1000 RJ45 Industrial Switch*Specifications subject to change without prior notice.Key Features / Technical Specifications:16 x 10/100/1000BASE-T (RJ45) portsUnmanaged industrial switchAuto-negotiation on all portsQoS support (IEEE 802.1p)Flow control (IEEE 802.3x)Operating temperature: -40°C~75°CIP30 metal housingDIN-Rail mountingPower input: 12~48VDCPower consumption: 14WWeight: 880gDimensions: 50 x 163.4 x 120.0 mm
