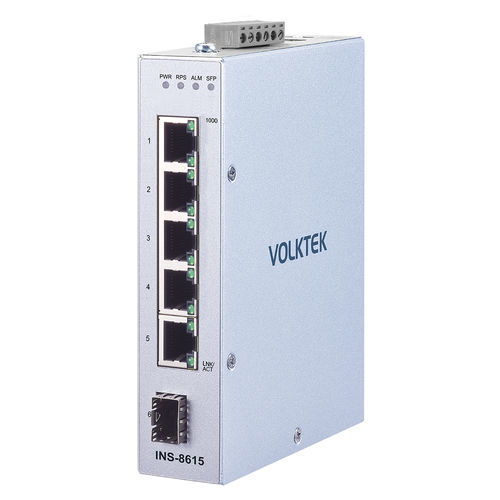

管理型イーサネットスイッチ INS-8615

6 ポートギガビットイーサネットDINレール

Product Features5 x 10/100/1000 RJ45 ports and 1 FX/GbE SFP uplink port (for long-distance connection)Topology map for network monitoringSupports IEEE 802.3az for reduced power consumption, cost savings, and environmental considerationStorm control, flow control, and QoS optimize network performanceOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 metal housingProduct OverviewThe INS-8615 is a high-performance managed industrial switch with 5-port 10/100/1000 RJ45 downlinks and 1-port multi-rate FX/GbE SFP uplink, designed for communication between controllers and devices in automation environments. The SFP port provides long-distance, noise-free fiber optic transmission adaptable to Fast and Gigabit Ethernet speeds. It is used with peripherals such as multi-axis robots, PLCs, HMIs, and legacy devices. All ports support auto-negotiation and offer Modbus TCP for easy device aggregation in industrial Ethernet applications.This switch optimizes traffic using storm, flow control, and QoS, prioritizing industrial data packets to prevent data loss during communication and ensure stable transmission. It features a topology map for network visualization and complies with cybersecurity standards to protect against network vulnerabilities.This switch is built with industrial-grade components and housed in a high thermal conductivity IP30 aluminum case, protecting the device from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperatures from -40°C to 75°C (-40°F to 167°F), making it suitable for harsh industrial applications. For reliability, redundant power supply and terminal block alarm relay contacts ensure uninterrupted operation and alert in case of power failure.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Efficient network monitoring and management: SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.Port-based and IEEE 802.1Q VLAN: GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) to segment large networks into smaller parts or separate broadcast domains.Efficient traffic prioritization: Effective QoS mechanisms to allocate appropriate bandwidth for critical communications and dedicated traffic for specific applications.Gigabit connectivity: 5 x 10/100/1000Base-T ports and 1 Gigabit SFP slot for long-distance transmission.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication)Interface: 5 x 10/100/1000BASE-T (RJ45), 1 x GbE SFP Slot; DIP Switch for Primary/Redundant Power Voltage Drop Alarm setting; LED Panel: PWR, RPS, ALM, SFP, 1000, LNK/ACTPower: Input Voltage: Primary/Redundant inputs: 20~57VDC; Connection: Terminal Block; Power Consumption: 10W; Alarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Metal Case (IP30 protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 515 g (1.1 lb); Dimensions (WxHxD): 31 x 139.4 x 118.2 mm (1.22 x 5.49 x 4.65 in)Ordering InformationModelDescriptionINS-8615Managed 5 x 10/100/1000 RJ45 & 1 x FX/GbE SFP SwitchKey Features / Technical Specifications5 x 10/100/1000 RJ45 ports1 x FX/GbE SFP uplink portTopology map for network monitoringIEEE 802.3az support for energy efficiencyStorm control, flow control, QoSOperating temperature: -40°C~75°CIP30 metal housingDIN-Rail mountingRedundant power supply supportAlarm relay outputDimensions: 31 x 139.4 x 118.2 mmWeight: 515 g
