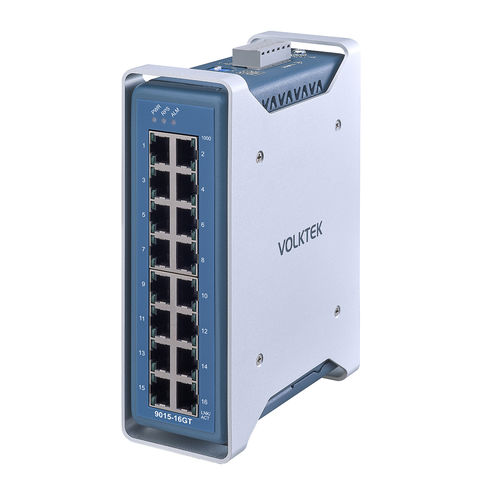

管理型イーサネットスイッチ 9015-16GT-I

16 ポートDINレールDIP

Product Features16 10/100/1000 RJ45 ports (supports industrial devices such as PLCs, HMIs, printers for multi-axis robots and automation systems)Topology map for network monitoringStorm control, flow control, and QoS to optimize network performanceTerminal block with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 aluminum housingProduct OverviewThe Woodpecker 9015-16GT-I is a high-performance 16-port 10/100/1000 RJ45 managed industrial switch, ideal for communication between controllers and devices in automation settings. It supports multi-axis robots and peripheral devices such as PLCs, HMIs, and legacy devices. All ports offer auto-negotiation, and Modbus TCP enables easy aggregation of devices in industrial Ethernet applications. This switch optimizes traffic, prioritizes industrial data packets, prevents data loss during communication, and ensures stable transmission. It also features a topology map for network visualization and complies with cybersecurity standards to protect against network vulnerabilities.This switch is built with industrial-grade components and enclosed in a high thermal conductivity IP30 aluminum case, protecting the device from tools and hazards. It withstands vibration, shock, free fall, and interference, and can be used in a temperature range of -40°C~75°C (-40°F~167°F), making it suitable for extreme industrial applications. For reliability, it features redundant power supply and alarm relay contacts on the terminal block, issuing warnings during power outages and ensuring continuous operation.FunctionsEnvironmental ResistanceThis device is certified for safe use under harsh conditions and is designed to withstand electromagnetic interference, electrostatic discharge, power surges, overvoltage, overcurrent, and reverse polarity during accidents. Operating temperature range: -40°C to 75°C.Shock (IEC 60068-2-27) | Free Fall (IEC 60068-2-32) | Vibration (IEC 60068-2-6)Secure Remote Management ControlThis Ethernet switch provides security features such as SSH, HTTPs, SNMPv3, 802.1X, and TACACS+, allowing users to operate the switch securely and protect the network from malicious attacks.Network Monitoring ToolsTo monitor the network and maintain smooth operation, tools such as cable testing, multicast address, and MAC flapping help identify issues that may affect industrial processes.Redundant Power SupplyTo ensure continuous power supply, this switch can be connected to two power sources simultaneously via a standard industrial terminal block and includes an alarm function. If either power source fails, the switch draws power from the alternative source and activates the alarm to notify technicians.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 802.1ad (QinQ)Interface: 16x10/100/1000BASE-T (RJ45), DIP Switch (Primary, Redundant Power and Drop Alarm Setting), LED Panel (PWR, RPS, ALM, 1000, LNK/ACT)Power: Input Voltage: Primary inputs: 12~60V DC, Redundant inputs: 12~60V DC; Connection: Terminal Block; Power Consumption: 18W (12V/1.5A); Alarm Relay: 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Dimension (WxHxD): 50 x 164.9 x 119.9 mm (1.97 x 6.49 x 4.72 in); Weight: 840 g (1.2 lb)Ordering InformationModelDescriptionWoodpecker 9015-16GT-IManaged 16 x 10/100/1000 RJ45 Industrial SwitchKey Features / Technical Specifications16x 10/100/1000BASE-T (RJ45) managed industrial switchSupports Modbus TCP for industrial Ethernet applicationsRedundant power supply and alarm relay for reliabilityIP30 aluminum housing, DIN-rail mountingOperating temperature: -40°C~75°CDimensions: 50 x 164.9 x 119.9 mmWeight: 840 g
