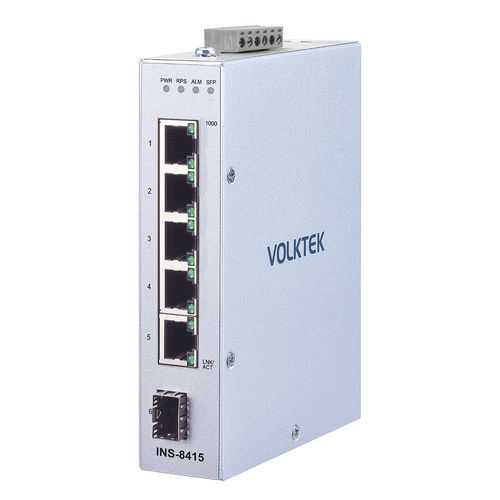

非管理型イーサネットスイッチ INS-8415

6 ポートProfiNetEtherNet/IP

Product FeaturesLong-distance high-speed connection with five 10/100/1000 RJ45 ports and one GbE SFP uplink portOperable system with auto-negotiation ports, requiring no additional device installationSupports QoS function via 802.1p tag, allowing prioritization of network traffic for critical control data in industrial applications such as EIP (EtherNet/IP), PROFINET, and GOOSE, minimizing latencyTerminal block equipped with redundant power and alarm relay contacts to ensure non-stop operationOperating temperature range: -40°C~75°C (-40°F~167°F), IP30 metal housingProduct OverviewThe INS-8415 is a 5-port unmanaged switch with 10/100/1000 RJ45 downlinks and one GbE SFP uplink, used for communication between controllers and devices in automation settings. This device can be used with peripherals such as multi-axis robots, PLCs, HMIs, and legacy devices. Additionally, it provides auto-negotiation on all ports, facilitating device aggregation in industrial Ethernet applications.This switch offers various built-in traffic optimization and network performance features to prioritize critical industrial data packets, prevent data loss during communication, and ensure stable transmission.Constructed with industrial-grade components and enclosed in an IP30 metal case, it protects the device from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperature ranges from -40°C to 75°C (-40°F to 167°F), making it suitable for harsh industrial environments.FunctionsRobust electrical and electromagnetic protection: Designed to withstand EMI (Electromagnetic Interference), ESD (Electrostatic Discharge), power surges, overvoltage, overcurrent, and reverse polarity.Easy installation: All ports support auto MDI/MDI-X, enabling easy connection to other switches and hubs.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.1p (Class of Service)Interface: 5 x 10/100/1000BASE-T (RJ45), 1 x GbE SFP Slot, DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, SFP, 1000, LNK/ACT)Power: Input Voltage: Primary: 20~57V DC, Redundant: 20~57V DC; Connection: Terminal block, Mini-DIN; Power Input Polarity Protection: Present; Power Voltage Drop Alarm: Primary/Redundant Power Input; Alarm Relay: One relay output, 1 A @ 24V DC; Power Consumption: 10WMechanical and Environment: Housing: Metal Case (IP30 protection); Mounting: DIN-Rail, Wall Mount (Optional); Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Dimension (WxHxD): 31 x 139.4 x 118.2 mm (1.22 x 5.49 x 4.65 in); Weight: 510 g (1.1 lb)Ordering InformationModelDescriptionINS-8415Unmanaged 5 x 10/100/1000 RJ45 & 1 x GbE SFP Industrial SwitchTechnical Specifications / Features5 x 10/100/1000BASE-T (RJ45) ports1 x GbE SFP uplink portAuto-negotiation on all portsQoS support via 802.1pRedundant power input and alarm relayOperating temperature: -40°C~75°CIP30 metal housingDIN-Rail and optional wall mountEMI, ESD, surge, overvoltage, overcurrent, and reverse polarity protectionPower consumption: 10WDimensions: 31 x 139.4 x 118.2 mmWeight: 510 g
