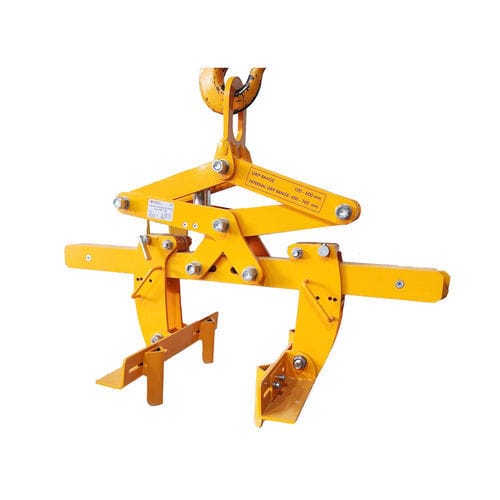

Block lifter TPBL-600

General
The Turf Paving Block Lifter by Aardwolf is a specialised handling tool for rapid installation of turf paving blocks. It installs up to four blocks at once and accepts block widths across an adjustable grip range of 100–600 mm. The unit is designed for compact footprint and robust operation while remaining easy to manoeuvre on site.

Key features

• Installs four turf paving blocks simultaneously
• Adjustable grip range: 100–600 mm
• Compact, sturdy construction for durability and manoeuvrability
• Quick, secure attachment to carrier: compatible with load hooks, chains or slings
• Automatic release mechanism to speed cycles and reduce manual handling
• Operable by a single operator to reduce labour requirements

Technical specifications

• Product name: Turf Paving Block Lifter
• Model / Product Code: TPBL-600
• Grip (adjustable) range: 100–600 mm
• Installation capacity: up to 4 blocks per cycle
• Attachment compatibility: load hooks, chains or slings
• Release mechanism: automatic release for rapid reloading
• Operator requirement: one operator
