Building material lifting clamp AHLC-2010-4T

for concrete slabsfor slabsstone

Horizontal Stone Lifting Clamp AHLC-2010-4T – Heavy-Duty Clamp for Stone Slabs and Precast Concrete Panels
The Aardwolf Horizontal Stone Lifting Clamp AHLC-2010-4T is a heavy-duty horizontal lifting clamp designed for handling large stone slabs, precast concrete panels and other heavy slab-format materials.
With a 4,000 kg working load limit (WLL) and a wide grip range of 300–2,010 mm, the AHLC-2010-4T is suitable for demanding lifting applications in stone processing, precast concrete production, construction and infrastructure projects.
The clamp connects to a crane or lifting system through its reinforced central lifting eye. During lifting, the load is securely held by friction between the replaceable high-friction rubber pads and the material surface. Once the load is lowered and fully supported, the automatic locking and release mechanism allows the clamp to be removed efficiently.
Its heavy-duty structural frame provides stable horizontal handling of large and dense materials. Optional rotating pads and limit stops are available for applications requiring material rotation between horizontal and vertical positions.Horizontal Stone Lifting Clamp AHLC-2010-4T – Heavy-Duty Clamp for Stone Slabs and Precast Concrete Panels
The Aardwolf Horizontal Stone Lifting Clamp AHLC-2010-4T is a heavy-duty horizontal lifting clamp designed for handling large stone slabs, precast concrete panels and other heavy slab-format materials.
With a 4,000 kg working load limit (WLL) and a wide grip range of 300–2,010 mm, the AHLC-2010-4T is suitable for demanding lifting applications in stone processing, precast concrete production, construction and infrastructure projects.
The clamp connects to a crane or lifting system through its reinforced central lifting eye. During lifting, the load is securely held by friction between the replaceable high-friction rubber pads and the material surface. Once the load is lowered and fully supported, the automatic locking and release mechanism allows the clamp to be removed efficiently.
Its heavy-duty structural frame provides stable horizontal handling of large and dense materials. Optional rotating pads and limit stops are available for applications requiring material rotation between horizontal and vertical positions.

How It Works
The clamp connects to a crane or lifting system via the central lifting eye. Before lifting, adjust the jaw opening to match the material thickness and fully insert the slab into the clamp jaws. As the lift is applied the clamp secures the load by friction between the pads and the material surface. After the load is set down and supported, the latch releases automatically to allow removal of the clamp.

Key Features

• Working load limit (WLL) 4000 kg: suitable for heavy slabs and dense materials
• Wide grip range 300–2010 mm: supports large-format slabs and panels

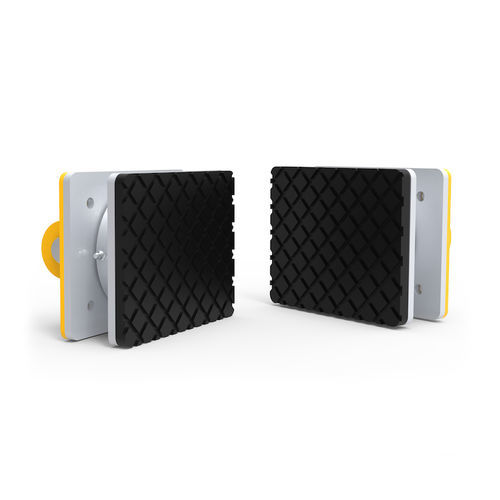

• Replaceable high-friction rubber/polyurethane pads: secure grip while minimising surface damage
• Automatic locking and release mechanism: engages during lift and releases on set-down
• Reinforced central lifting eye for balanced, safe lifts
• Heavy-duty structural frame for demanding construction use
• Optional Extra: Rotating pads and limit stops available on request to allow controlled rotation between horizontal and vertical orientations

Specifications
Metric | Imperial
Grip range: 300 – 2010 mm | 12" – 79"
Working load limit: 4000 kg | 8818 lb
Net weight: 228 kg | 503 lb
Gross weight: 248 kg | 547 lb
Packaging dimensions: L.2450 x W.560 x H.440 mm | 96.5" x 22" x 17.3"

Technical data

• Brand: Aardwolf
• Model: AHLC-2010-4T
• Product type: Horizontal stone lifting clamp for slabs and slab-format materials
• Grip range: 300 – 2010 mm
• Working Load Limit (WLL): 4000 kg
• Net weight: 228 kg
• Gross weight: 248 kg
• Packaging dimensions: 2450 x 560 x 440 mm
• Replaceable high-friction pads (rubber/polyurethane)
• Automatic locking and release mechanism
• Reinforced central lifting eye
• Optional rotating pads and limit stops (available on request)
