Concrete slab lifting clamp ASL300

stoneverticalautomatic

General

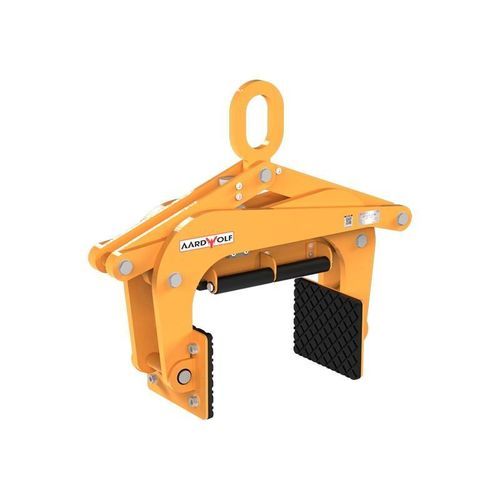

The Aardwolf Scissor Clamp Lifter ASL300 is designed for safe vertical lifting of stone, concrete and similar heavy materials in construction, fabrication and landscaping environments. The gravity-controlled auto-locking mechanism engages on lift and releases on set-down, enabling hands-free operation. Replaceable high-friction rubber contact pads and a rubber-lined centre rest pad protect material surfaces from chips and scratches. Constructed from heavy-duty steel with a powder-coated safety yellow finish, the ASL300 provides a grip range of 150–300 mm (6–12 in) and a working load limit of 1500 kg (3307 lb).

Features

• Gravity-controlled auto-locking for automatic grip and release
• Replaceable high-friction rubber contact pads to protect surfaces
• Side rollers for load centring and edge protection
• Central crane hook for fast crane or forklift attachment
• Heavy-duty steel construction with powder-coated safety yellow finish

Optional Extra
Short chain and shackle.

Specifications
Metric | Imperial
Grip range | 150 - 300 mm | 6–12 in
Working load limit | 1500 kg | 3307 lb
Net weight | 49 kg | 108 lb
Gross weight | 52.5 kg | 116 lb
Packaging dimensions | L700 x W230 x H480 mm | 27.6 x 9.1 x 18.9 in

Technical specifications

• Model: ASL300
• Grip range: 150–300 mm (6–12 in)
• Working load limit (WLL): 1500 kg (3307 lb)
• Net weight: 49 kg (108 lb)
• Gross weight: 52.5 kg (116 lb)
• Packaging dimensions: L700 x W230 x H480 mm (27.6 x 9.1 x 18.9 in)
• Construction: heavy-duty steel, powder-coated safety yellow
• Grip pads: replaceable high-friction rubber; rubber-lined centre rest pad to prevent chipping
• Operation: gravity-controlled auto-locking (automatic grip on lift, automatic release on set-down)
• Handling: side rollers for centring and protection; central crane hook for crane/forklift attachment
• Optional extra: short chain and shackle
