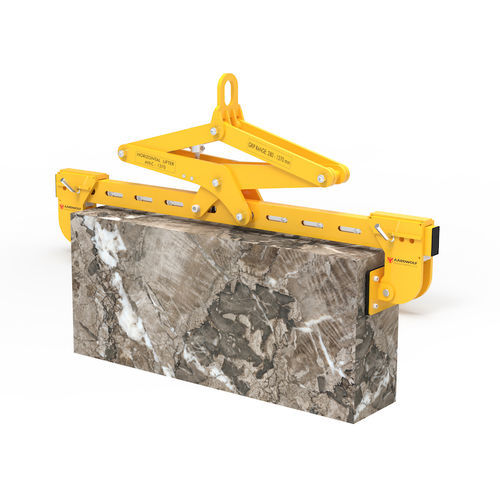

Stone lifting clamp AHLC-1370

blockverticalhorizontal

Overview
Designed for horizontal lifting and handling of concrete blocks and natural stone units. The clamp connects to crane hooks or forklift boom extensions and uses replaceable high-friction polyurethane pads to protect load surfaces. The jaws are gravity-actuated: they open when lowered and engage when lifted, enabling automatic clamp/unclamp cycles with minimal manual intervention.

Features

• Adjustable jaw opening with a wide grip range to fit varying block sizes
• Replaceable high-friction polyurethane pads to reduce surface damage
• Gravity-controlled automatic locking and unlocking
• Lifting eye for direct hook or rigging attachment
• Optional rotating pad and limit stop for rotation tasks

Rotating pad and limit stop (optional)

• Enables controlled rotation of loads in horizontal and vertical orientations
• Limit stop keeps a safe distance between clamp and material during rotation
• Quick-change rotating pads support safe and efficient rotation of heavy blocks

Specifications
Metric — Imperial
Grip range: 280 – 1370 mm — 11 in – 54 in
Working load limit (WLL): 1500 kg — 3307 lb
Net weight: 124 kg — 273 lb
Gross weight: 141 kg — 311 lb
Packaging dimensions: L.1840 x W.530 x H.390 mm — 72.4 in x 20.9 in x 15.4 in

Technical details

• Model: AHLC-1370
• Application: Horizontal lifting and handling of concrete and natural stone blocks
• Pad material: Replaceable high-friction polyurethane
• Grip range: 280–1370 mm
• Working load limit: 1500 kg
• Operation: Gravity-actuated automatic open/close and auto-lock
• Compatibility: Crane hook attachment or forklift boom with fork extensions
• Packaging dimensions and weights as listed above
