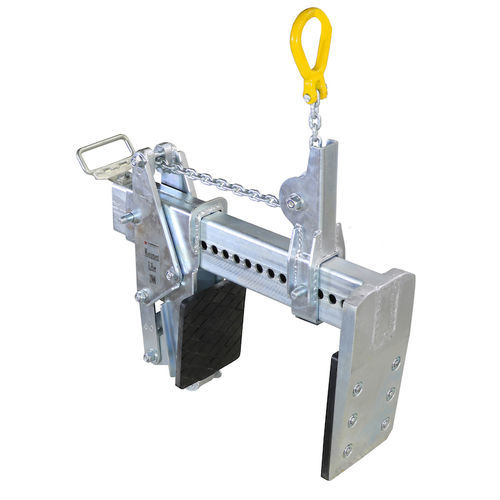

The Aardwolf Monument Clamp GPM1000A is an automatic lifting clamp designed for lifting and positioning stone, concrete and marble building materials, including monuments, slabs, fascia panels and retaining wall blocks.
With a 1,000 kg working load limit and a 20–300 mm grip range, the GPM1000A is suitable for monument installation, stone fabrication, construction and building material handling applications.
The clamp uses a gravity-controlled locking latch that automatically grips the material when lifted and releases it when rested. This automatic operation helps streamline repetitive lifting and positioning tasks.
The clamping jaw and centre of gravity are quickly adjustable using locking pins, allowing the lifter to accommodate different material dimensions and lifting conditions.
The jaws are lined with vulcanized rubber, providing a secure, non-marking grip while helping protect finished stone, marble and concrete surfaces.
Its slim profile makes the GPM1000A particularly useful for positioning slabs, blocks and building materials in confined installation areas.
Applications- Lifting and setting concrete, stone and marble fascia and panels
- Moving and placing heavy or awkward retaining wall blocks and slabs
- Installation in tight or confined areas where non‑marking grip is required
- Use with cranes, hoists and other lifting equipment
SpecificationsMetric / Imperial
Grip range: 20 - 300 mm | 0.8" - 11.8"
Working load limit (WLL): 1000 kg | 2204 lb
Net weight: 33 kg | 73 lb
Gross weight: 36 kg | 79 lb
Packaging dimensions: L660 x W200 x H400 mm | 26" x 7.9" x 15.7"
Technical features- Model: GPM1000A
- Brand: Aardwolf
- Grip range: 20 - 300 mm (0.8" - 11.8")
- Working load limit (WLL): 1000 kg (2204 lb)
- Net weight: 33 kg (73 lb); Gross weight: 36 kg (79 lb)
- Packaging dimensions: L660 x W200 x H400 mm (26" x 7.9" x 15.7")
- Gravity‑controlled locking latch: grips on lift, releases at rest
- Adjustable clamping jaw and centre of gravity via locking pins for fast setup
- Jaws lined with vulcanized rubber for safe, non‑marking grip
- Slim profile for setting material in tight places
