Concrete slab lifting clamp ADBL-2000
for slabsstonevertical

Concrete slab lifting clamp - ADBL-2000 - AARDWOLF INDUSTRIES LLC - for slabs / stone / vertical
Concrete slab lifting clamp - ADBL-2000 - AARDWOLF INDUSTRIES LLC - for slabs / stone / vertical
Concrete slab lifting clamp - ADBL-2000 - AARDWOLF INDUSTRIES LLC - for slabs / stone / vertical - image - 2
Concrete slab lifting clamp - ADBL-2000 - AARDWOLF INDUSTRIES LLC - for slabs / stone / vertical - image - 3
Concrete slab lifting clamp - ADBL-2000 - AARDWOLF INDUSTRIES LLC - for slabs / stone / vertical - image - 4
Add to favorites
Compare this product

Characteristics

Intended load
for concrete slabs, stone, for slabs
Lifting type
vertical
Other characteristics
automatic
Load limit

2 t
(2.2 us ton)

Description

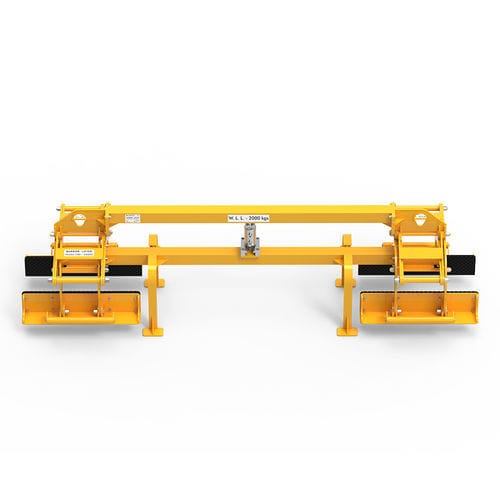

The Aardwolf Double Barrier Lifter ADBL-2000 is a heavy-duty concrete barrier lifting clamp designed for the safe handling, lifting and positioning of long, rigid materials such as concrete barriers, precast concrete elements, granite slabs and sandstone blocks.

With a 2,000 kg (4,408 lb) working load limit and a 155–250 mm grip range, the ADBL-2000 is particularly suitable for construction, precast concrete, stone handling and infrastructure applications where long and heavy loads require stable handling.

The lifter uses a gravity-controlled automatic locking system. The clamp opens when the load is set down and automatically closes when lifting begins, simplifying the handling process without requiring a separate power source.

Vulcanized rubber contact pads provide a secure grip while helping protect concrete and stone surfaces from damage. A rubber-lined protective bar further reduces the risk of edge chipping during handling.

The ADBL-2000 is also equipped with guide legs to improve load balance and positioning during lowering, making it especially suitable for handling long concrete barriers and rigid stone products where controlled placement is important.The Aardwolf Double Barrier Lifter ADBL-2000 is a heavy-duty concrete barrier lifting clamp designed for the safe handling, lifting and positioning of long, rigid materials such as concrete barriers, precast concrete elements, granite slabs and sandstone blocks.

With a 2,000 kg (4,408 lb) working load limit and a 155–250 mm grip range, the ADBL-2000 is particularly suitable for construction, precast concrete, stone handling and infrastructure applications where long and heavy loads require stable handling.

The lifter uses a gravity-controlled automatic locking system. The clamp opens when the load is set down and automatically closes when lifting begins, simplifying the handling process without requiring a separate power source.

Vulcanized rubber contact pads provide a secure grip while helping protect concrete and stone surfaces from damage. A rubber-lined protective bar further reduces the risk of edge chipping during handling.

The ADBL-2000 is also equipped with guide legs to improve load balance and positioning during lowering, making it especially suitable for handling long concrete barriers and rigid stone products where controlled placement is important.

Features
  • Automatic locking and unlocking mechanism
  • Vulcanized rubber pads to protect contact surfaces
  • Protective rubber-lined bar to reduce chipping
  • Guide legs for precise balancing during lowering


Specifications
Metric — Imperial
Grip range: 155 - 250 mm — 6.1" – 9.8"
Working load limit: 2000 kg — 4409 lb
Net weight: 264 kg — 582 lb
Gross weight: 330 kg — 728 lb
Packaging dimensions: L.2710 x W.860 x H.460 mm — 107" x 34" x 18"

Technical specifications
  • Product Code: ADBL-2000
  • Grip range: 155 - 250 mm (6.1" – 9.8")
  • Working load limit (WLL): 2000 kg (4409 lb)
  • Net weight: 264 kg (582 lb)
  • Gross weight: 330 kg (728 lb)
  • Packaging dimensions: L.2710 x W.860 x H.460 mm (107" x 34" x 18")
  • Clamping: gravity-controlled (opens when set down, closes when lifted)
  • Pads: vulcanized rubber pads
  • Protective bar: rubber-lined to prevent chipping
  • Guide legs for precise positioning during lowering
  • Automatic lock/unlock for efficient operation
