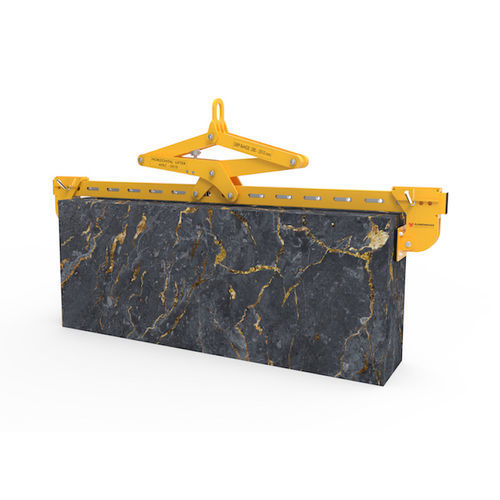

Stone lifting clamp AHLC-2010

blockhorizontalmechanical

General
The AHLC-2010 horizontal stone lifting clamp is designed for secure horizontal lifting and transfer of concrete blocks and natural stone in industrial environments. It is compatible with cranes and forklift boom attachments. High-friction, replaceable rubber pads protect load surfaces and reduce the risk of damage.

Operation
The clamp uses a gravity-actuated mechanism: it opens on one lift and clamps on the next, enabling fast, intuitive cycles with minimal manual intervention.

Features

• Adjustable grip range to accommodate a variety of block sizes.
• Wide gripping range (280–2010 mm) for versatile use across sites.
• High-friction replaceable rubber pads to protect surfaces.
• Lifting eye for crane hook and compatibility with forklift boom extensions.
• Automatic lock/unlock cycle to improve safety and handling speed.
• Optional upgrade: rotating pad and limit stop for controlled rotation and positioning.

Integration of the Rotating Pad and Limit Stop

• Rotating pad and limit stop increase efficiency when material rotation is required, supporting both horizontal and vertical orientations.
• The limit stop maintains a safe clearance between clamp and load during rotation operations.
• Quick-change rotating pads enable safe, efficient rotation of heavy blocks and stone.

Specifications (table)
Metric (mm-kg) | Imperial (in-lb)
Grip range | 280 – 2010 mm | 11 in – 79 in
Working load limit | 1500 kg | 3307 lb
Net weight | 137 kg | 302 lb
Gross weight | 155 kg | 342 lb
Packaging dimensions | L.2450 x W.530 x H.360 mm | 96.5 in x 20.9 in x 14.2 in

Characteristics / Technical specifications

• Product code: AHLC-2010
• Grip range: 280 – 2010 mm (11 in – 79 in)
• Working load limit (WLL): 1500 kg (3307 lb)
• Net weight: 137 kg (302 lb)
• Gross weight: 155 kg (342 lb)
• Packaging dimensions: L.2450 x W.530 x H.360 mm (96.5 in x 20.9 in x 14.2 in)
• High-friction replaceable rubber pads
• Gravity-actuated automatic open/close operation
• Optional rotating pad and limit stop available (upgrade)
