Concrete slab lifting clamp ASL125

stoneverticalautomatic

General

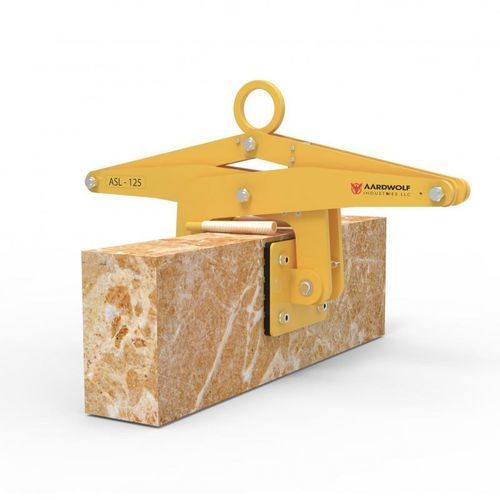

The Aardwolf Scissor Clamp Lifter ASL125 is engineered for safe vertical lifting of stone, concrete and similar heavy materials in construction, fabrication and landscaping environments. The unit features a gravity-controlled auto-locking mechanism that grips on lift and releases on set-down, allowing hands-free operation. Replaceable high-friction rubber pads protect material surfaces while ensuring secure contact. Integrated side rollers assist load alignment and protect edges during placement. Constructed from steel with a powder-coated safety yellow finish, the ASL125 covers a grip range of 0–125 mm and a working load limit of 750 kg (1653 lb).

Features

• Gravity-controlled auto-locking system for automatic grip on lift and release on set-down
• Replaceable high-friction rubber pads to protect surfaces and facilitate maintenance
• Side rollers for precise load centering and edge protection
• Central crane hook for quick attachment to crane or forklift
• Heavy-duty steel construction with powder-coated safety yellow finish

Optional Extra
Short chain and shackle.

Specifications
Metric — Imperial
Grip range — 0 - 125 mm — 0 – 5"
Working load limit — 750 kg — 1653 lb
Net weight — 29 kg — 64 lb
Gross weight — 33 kg — 73 lb
Packaging dimensions — L.790 x W.230 x H.400 mm — 26.8" x 8.7" x 14.6"

Technical specifications

• Model: ASL125
• Grip range: 0 - 125 mm (0 – 5")
• Working load limit (WLL): 750 kg (1653 lb)
• Net weight: 29 kg (64 lb)
• Gross weight: 33 kg (73 lb)
• Packaging dimensions: 790 x 230 x 400 mm (26.8" x 8.7" x 14.6")
• Construction: Heavy-duty steel, powder-coated safety yellow
• Pads: Replaceable high-friction rubber pads to protect material surfaces
• Mechanism: Gravity-controlled auto-locking for automatic grip during lift and release on set-down
• Accessories: Integrated side rollers for load alignment; optional short chain and shackle
