Concrete slab lifting clamp ABL360-5000

for slabsstoneblock

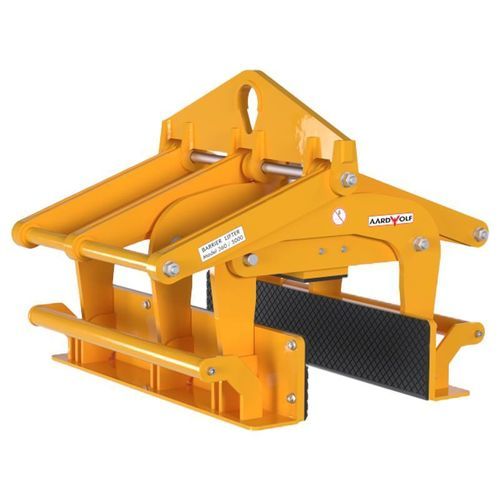

Aardwolf Barrier Lifter ABL360-5000 – Heavy-Duty 5,000 kg Concrete Barrier Lifting Clamp
The Aardwolf Barrier Lifter ABL360-5000 is a heavy-duty lifting clamp designed for safe and efficient handling of concrete barriers, barrier walls, sandstone blocks, stone blocks and other large, heavy block materials.
With a 5,000 kg working load limit and a 100–360 mm grip range, the ABL360-5000 is suitable for construction sites, precast concrete plants, stone processing facilities and heavy-duty material handling applications.
The clamp uses a gravity-controlled gripping mechanism that opens when the lifter is set down and closes automatically when the load is lifted. Its automatic locking and unlocking system simplifies repetitive lifting operations and reduces manual handling.
The contact surfaces feature vulcanized rubber pads to provide secure gripping while protecting the material surface. A rubber-lined protective bar further helps prevent chipping and surface damage during handling.

Features

• Automatic load lock and unlock
• Vulcanized rubber contact pads
• Rubber-lined protective bar to prevent chipping and surface damage

Specifications
Metric (mm-kg) / Imperial (in-lb)
Grip range: 100 - 360 mm | 4 in - 14.2 in
Working load limit (WLL): 5000 kg | 11023 lb
Net weight: 426 kg | 939 lb
Gross weight: 440 kg | 970 lb
Packaging dimensions: L.1100 x W.1000 x H.950 mm | 43.3 in x 39.4 in x 37.4 in

Technical characteristics

• Model: ABL360-5000
• Brand: Aardwolf
• Grip range: 100 - 360 mm (4 in - 14.2 in)
• Working load limit: 5000 kg (11023 lb)
• Net weight: 426 kg (939 lb)
• Gross weight: 440 kg (970 lb)
• Packaging dimensions: 1100 x 1000 x 950 mm (43.3 in x 39.4 in x 37.4 in)
• Gravity-controlled clamp: opens at rest, closes on lift
• Vulcanized rubber pads and rubber-lined bar to protect material surfaces
