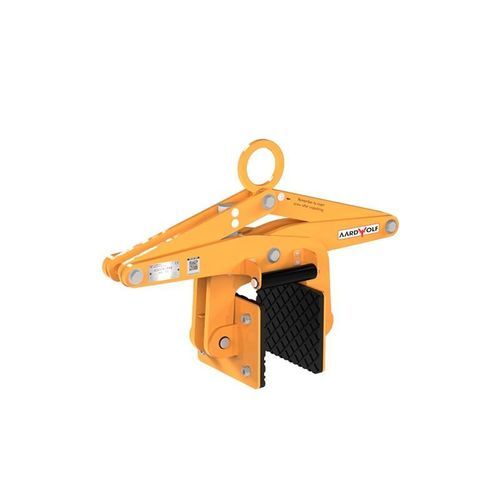

Slab lifting clamp ASL105

stoneverticalautomatic

The Aardwolf ASL105 Scissor Clamp Lifter is designed for safe vertical lifting and handling of stone, concrete retaining wall sleepers, and similar heavy materials. With a 0–105 mm grip range and 750 kg working load limit, this lifting clamp is suitable for construction sites, stone fabrication facilities, landscaping projects, and concrete sleeper installation.

The ASL105 uses high-friction, replaceable rubber jaw pads to provide a secure grip while helping protect material surfaces from chips and scratches. Integrated side rollers assist with accurate positioning and centering of the clamp on the load, while also helping protect material edges during lifting and handling.

A gravity-controlled automatic locking mechanism allows the scissor clamp to grip the load during lifting and release automatically when the load is set down, reducing manual intervention. Its durable steel construction, central lifting point, and powder-coated finish make the ASL105 suitable for use with cranes and forklift booms in demanding workshop and construction environments.

KEY FEATURES

• Auto-locking: gravity-operated system for automatic grip and release.
• Replaceable rubber jaw pads: high-friction protective pads to prevent surface damage.
• Integrated side rollers: assist centring and protect material edges during lifting.
• Crane hook ready: central lifting eye for quick attachment to cranes or boom forklifts.
• Steel construction with powder-coated safety yellow finish for durability and site visibility.

OPTIONAL EXTRA
Short chain and shackle available.

SPECIFICATIONS
Metric | Imperial
Grip range | 0 - 105 mm | 0 – 4"
Working load limit | 750 kg | 1653 lbs
Net weight | 24 kg | 53 lbs
Gross weight | 28 kg | 62 lbs
Packaging dimensions | L.690 x W.230 x H.410 mm | 27 1/4" x 9" x 16 1/8"

TECHNICAL SPECIFICATIONS

• Model: ASL105
• Grip range: 0 - 105 mm (0 – 4")
• Working load limit: 750 kg (1653 lbs)
• Net weight: 24 kg (53 lbs)
• Gross weight: 28 kg (62 lbs)
• Packaging dimensions: 690 x 230 x 410 mm (27 1/4" x 9" x 16 1/8")
• Jaw pads: high-friction, replaceable rubber pads
• Mechanism: gravity-controlled auto-lock
• Features: integrated side rollers, central crane hook
• Finish: powder-coated safety yellow
• Optional: short chain and shackle
